Sold out
DS-PM-RSI8
Model: DS-PM-RSI8 – Hikvision Intrusion Alarm Panels
Details: RS485 Input Expander
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-PM-RSI8 Overview

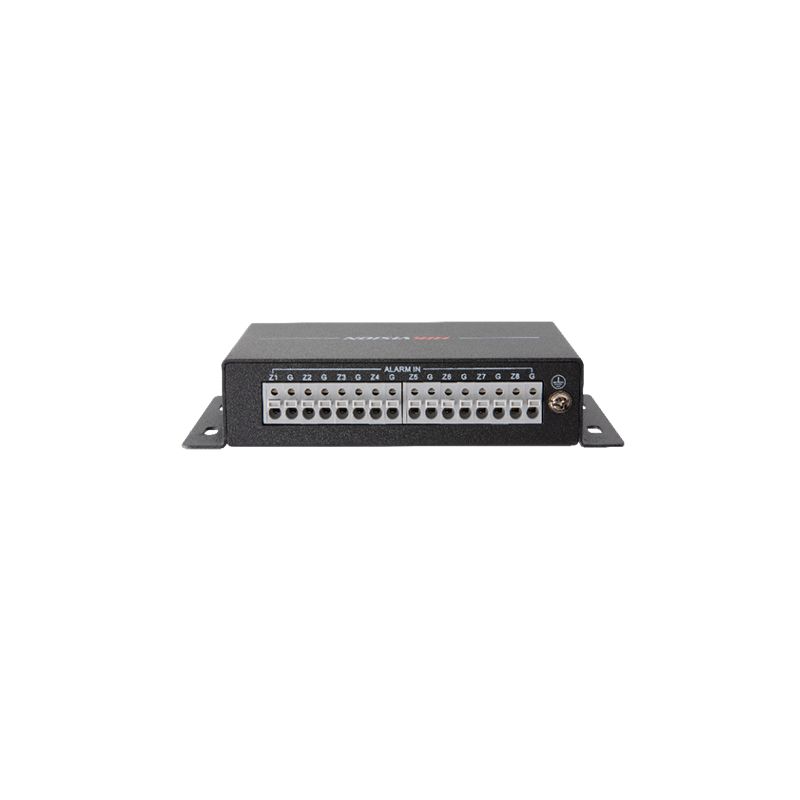

Quick Specs Figure 1 shows the appearance of DS-PM-RSI8.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-PM-RSI8 |
| Type | RS485 Input Expander |
| Communication Interface | RS485 |
| Number of Inputs | 8 |
| Input Type | NO/NC dry contact |
| Input Voltage Range | 12V DC |
| Current Consumption | Max. 40mA |
| Operating Temperature | -10��C to +55��C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Dimensions | 114mm �� 86mm �� 30mm |
| Mounting | Wall-mount |
| Indicators | LED for power and data communication |
| Certifications | CE, FCC |
| Protection Level | IP30 |
| Compatibility | Hikvision control panels |
| Firmware Upgrade | Via RS485 |
| Alarm Input | Supports 8 alarm inputs |
| Relay Outputs | None |
| Operation | Remote operation through control panel |
