DS-PM-RSO8-H
Model: DS-PM-RSO8-H – Hikvision Intrusion Alarm Panels
Details: RS485 Output Expander
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-PM-RSO8-H Overview

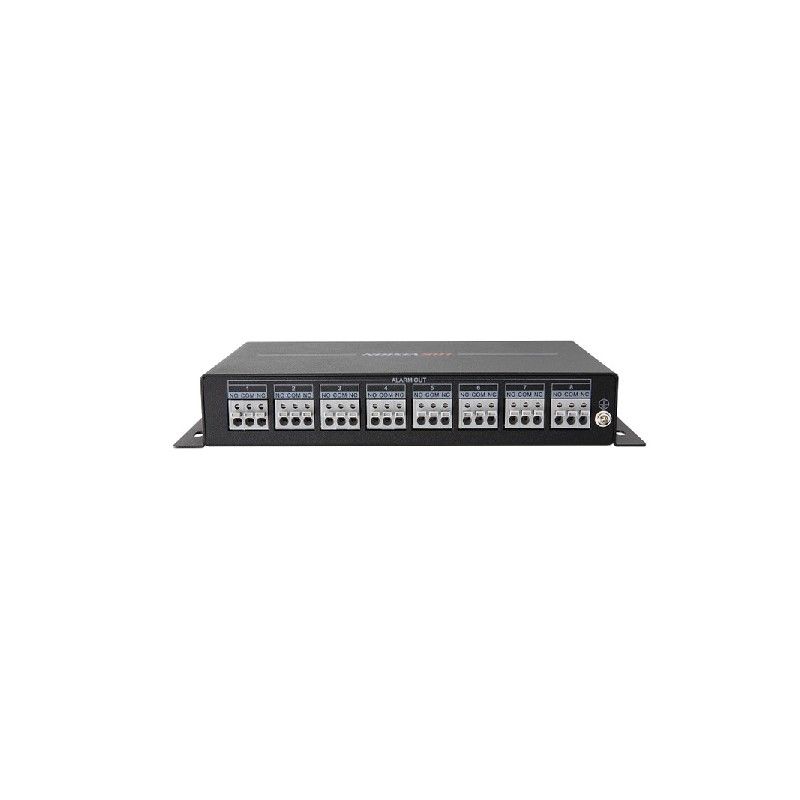

Quick Specs Figure 1 shows the appearance of DS-PM-RSO8-H.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-PM-RSO8-H |
| Product Type | RS485 Output Expander |
| Communication Interface | RS485 |
| Outputs | 8 |
| Output Current | Rated at 2A @ 24V DC |
| Input Voltage | 12V DC |
| Power Consumption | �� 1W |
| Operating Temperature | -10��C to 55��C |
| Storage Temperature | -20��C to 70��C |
| Humidity | 10% to 90% (Non-condensing) |
| Dimension | 150 mm �� 90 mm �� 29 mm |
| Housing Material | Plastic |
| Mounting Type | Wall-mount |
| Certifications | CE, FCC |
| LED Indicators | Yes |
| Protection | Over-voltage, over-current, and anti-static protection |
| Compatibility | Hikvision control panels |
| Response Time | ��200ms |
| Firmware Upgrade | Supported via RS485 interface |
