DS-SFP-FC16G-SW
Model: DS-SFP-FC16G-SW – Cisco SFP GLC Module
Details: 16 Gbps Fibre Channel SW SFP+, LC
Condition: Original New
Warranty: 3 Years Warranty.
Description
DS-SFP-FC16G-SW Overview

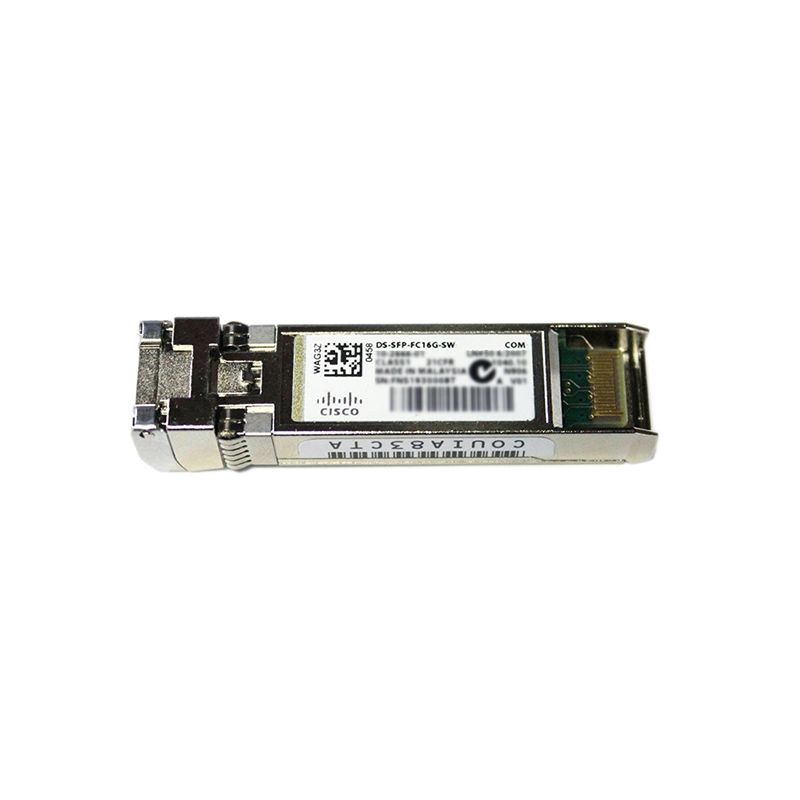

Quick Specs Figure 1 shows the appearance of DS-SFP-FC16G-SW.
Table 1 shows the Quick Specs.
| Description | 4/8/16-Gbps Fibre Channel SW, SFP+, LC |
| Type | Short wavelength |
| Wavelength (nanometers) | 850 |
| Fiber Type | MMF |
| Core Size (microns) | 62.550.050.050.062.550.050.050.062.550.050.050.050.0 |
| Baud Rate (GBd) | 14.02514.02514.02514.0258.58.58.58.54.254.254.254.254.25 |
| Cable Distance | 49 ft (15m) (OM1)115 ft (35m) (OM2)328 ft (100m) (OM3)410 ft (125m) (OM4)69 ft (21m) (OM1)164 ft (50m) (OM2)492 ft (150m) (OM3)623 ft (190m) (OM4)230 ft (70m) (OM1)492 ft (150m) (OM2)1247 ft (380m) (OM3)1312 ft (400m) (OM4)1312 ft (400m) (OM5) |
| Average Transmit Power (dBm) | Max: -1.3Min: -9 (4 Gbps) -8.2 (8 Gbps) -7.8 (16 Gbps) |
| Average Receive Power (dBm) | Max: 0Min: – |
| Fiber Loss Budget (dBm) | 12 |
| Operating Temperature | 0°C – 40°C |
| Storage Temperature | -40°C – 85°C |
