DS-SFP-FC8G-SW
Model: DS-SFP-FC8G-SW
Details: SFP+ transceiver module, 8.5 Gbps, MDS9000, Fabric Channel
Condition: Original New
Warranty: 3 Years Warranty.
Description
DS-SFP-FC8G-SW Overview

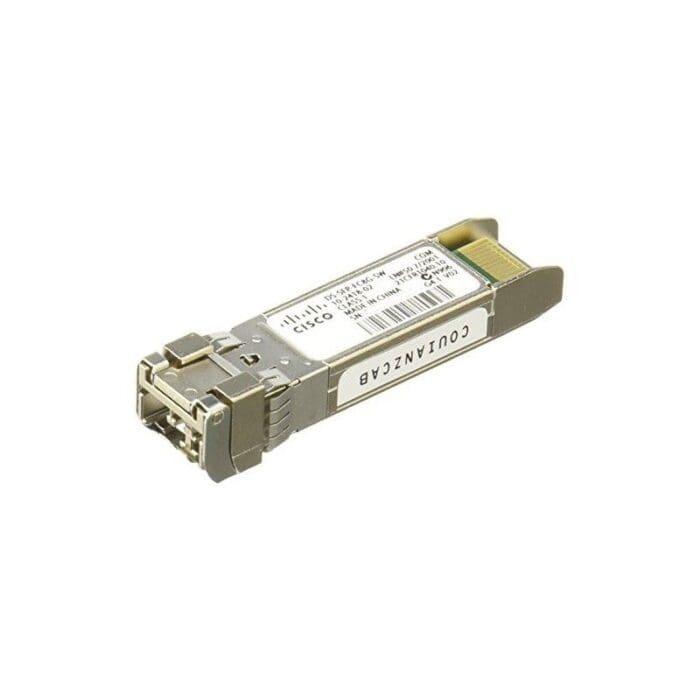

Quick Specs Figure 1 shows the appearance of DS-SFP-FC8G-SW.
Table 1 shows the Quick Specs.
| Product Number | DS-SFP-FC8G-SW |
| Product Description | 2/4/8-Gbps Fibre Channel-Shortwave, SFP+, LC |
| Wavelength (nanometers) | 850 |
| Fiber Type | MMF |
| Core Size (microns) | 62.562.562.550.0 (OM2)50.0 (OM2)50.0 (OM2)50.0 (OM3)50.0 (OM3)50.0 (OM3)50.0 (OM4)50.0 (OM4)50.0 (OM4) |
| Baud Rate (GBd) | 2.1254.2508.5002.1254.2508.5002.1254.2508.5002.1254.2508.500 |
| Cable Distance | 492 ft (150m)230 ft (70m)69 ft (21m)984 ft (300m)492 ft (150m)164 ft (50m)1640 ft (500m)1246 ft (380m)492 ft (150m)1706 ft( 520m)1312 ft (400m)623 ft (190m) |
| Average Transmit Power (dBm) | Maximum: -1.3Minimum:-10 (2 Gbps)-9 (4 Gbps)-8.2 (8 Gbps) |
| Average Receive Power (dBm) | Maximum: 0 |
| Fiber Loss Budget (dB) | (62.5 microns): 2.10 (2 Gbps)1.78 (4 Gbps)1.58 (8 Gbps)(50.0 microns [OM2]): 2.62 (2 Gbps)2.06 (4 Gbps)1.68 (8 Gbps)(50.0 microns [OM3]): 3.31 (2 Gbps)2.88 (4 Gbps)2.04 (8 Gbps) |
| Operating | Maximum: 40°CMinimum: 0°C |
| Storage | Maximum: 85°CMinimum: -40°C |
