-5%
DS118
Model: DS118 – Synology NAS DiskStation Value Series
Details: Synology NAS DiskStation DS118(Diskless), 1-Bay ï¼›1G DDR4
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS118 Overview

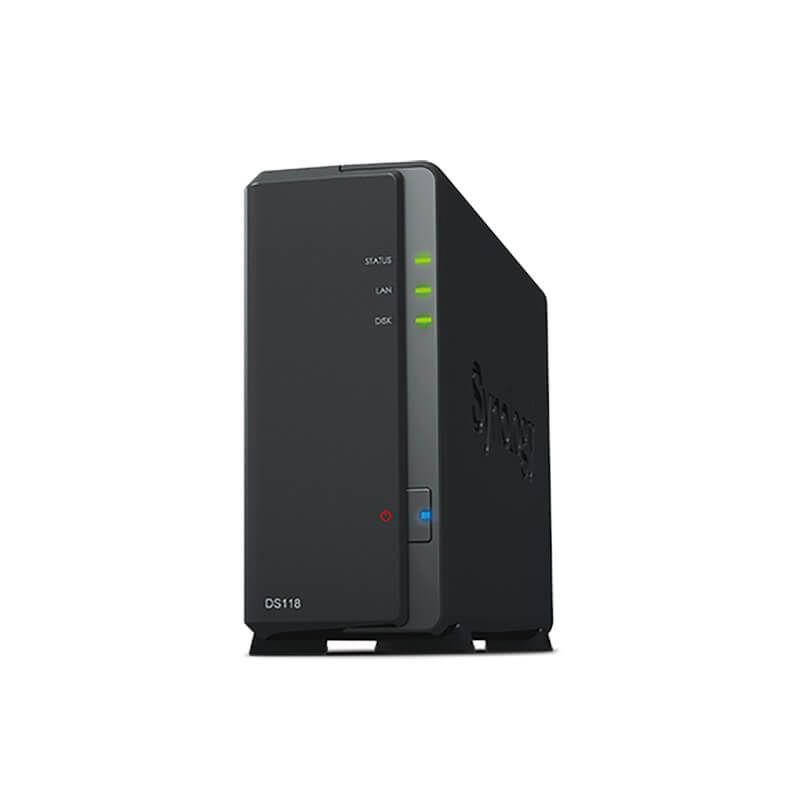

Quick Specs Figure 1 shows the appearance of DS118.
Table 1 shows the Quick Specs.
| CPU Model | Realtek RTD1296 |
| CPU Quantity | 1 |
| CPU Architecture | 64-bit |
| CPU Frequency | 4-core 1.4 GHz |
| Hardware Encryption Engine | √ |
| Hardware Transcoding Engine | 10-bit H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60 |
| System Memory | 1 GB DDR4 non-ECC |
| Notes | * Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).* Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75ËšC; Humidity: 58.2-61.8% |
| Drive Bays | 1 |
| Compatible Drive Type* | 3.5″ SATA HDD2.5″ SATA HDD (with optional 2.5″ Disk Holder)2.5″ SATA SSD (with optional 2.5″ Disk Holder) |
| Maximum Single Volume Size* | 108 TB |
| Hot Swappable Drive | – |
| RJ-45 1GbE LAN Port | 1 |
| USB 3.2 Gen 1 Port* | 2 |
| Internal Drives | EXT4 |
| External Drives | EXT4EXT3FATNTFSHFS+exFAT |
| Size (Height x Width x Depth) | 166 mm x 71 mm x 224 mm |
| Weight | 0.7 kg |
| System Fan | 60 mm x 60 mm x 1 pcs |
| Fan Speed Mode | Full-Speed ModeCool ModeQuiet ModeLow-power Mode |
| Brightness Adjustable Front LED Indicators | √ |
| Power Recovery | √ |
| Noise Level* | 16.7 dB(A) |
| Scheduled Power On / Off | √ |
| Wake on LAN / WAN | √ |
| Power Supply Unit / Adapter | 36 W |
| AC Input Power Voltage | 100 V to 240 V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 9.4 W (Access)4.22 W (HDD Hibernation) |
| British Thermal Unit | 32.1 BTU/hr (Access)14.41 BTU/hr (HDD Hibernation) |
| Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification | FCCCEBSMIEACCCCKCRCM |
| Warranty | 2 YearsNotes: The warranty period starts from the purchase date as stated on your purchase receipt. |
| Environment | RoHS Compliant |
| Packaging Content | Main Unit X 1Accessory Pack X 1AC Power Adapter X 1RJ-45 LAN Cable X 1Quick Installation Guide X 1 |
| Optional Accessories | VisualStation:Â VS960HD/VS360HDSurveillance Device License PackDisk Holder: Type C |
