DS1520+
Model: DS1520+ – Synology NAS DiskStation Plus Series
Details: Synology NAS DiskStation DS1520+(Diskless), 5-Bay; 8GB DDR4
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS1520+ Overview

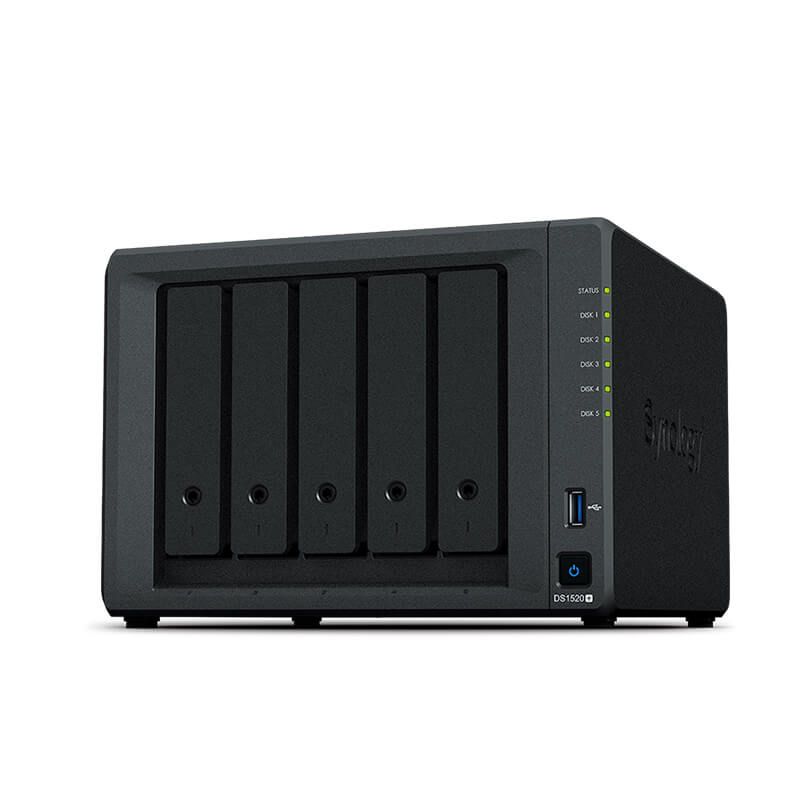

Quick Specs Figure 1 shows the appearance of DS1520+.
Table 1 shows the Quick Specs.
| CPU Model | Intel Celeron J4125 |
| CPU Quantity | 1 |
| CPU Architecture | 64-bit |
| CPU Frequency | 4-core 2.0 (base) / 2.7 (burst) GHz |
| Hardware Encryption Engine (AES-NI) | √ |
| System Memory | 8 GB DDR4 non-ECC |
| Memory Module Pre-installed | 8 GB (4 GB + 4 GB) |
| Total Memory Slots | 1 |
| Notes | Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75ËšC; Humidity: 58.2-61.8% |
| Drive Bays | 5 |
| Maximum Drive Bays with Expansion Unit | 15 (DX517 x 2) |
| M.2 Drive Slots | 2 (NVMe) |
| Compatible Drive Type* | 3.5″ SATA HDD2.5″ SATA HDD2.5″ SATA SSDM.2 2280 NVMe SSD |
| Maximum Single Volume Size* | 108 TB |
| Hot Swappable Drive | √ |
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port* | 2 |
| eSATA Port | 2 |
| Internal Drives | BtrfsEXT4 |
| External Drives | BtrfsEXT4EXT3FATNTFSHFS+exFAT |
| Size (Height x Width x Depth) | 166 mm x 230 mm x 223 mm |
| Weight | 2.62 kg |
| System Fan | 92 mm x 92 mm x 2 pcs |
| Fan Speed Mode | Full-Speed ModeCool ModeQuiet Mode |
| Noise Level* | 20.8 dB(A) |
| Power Supply Unit / Adapter | 120 W |
| AC Input Power Voltage | 100 V to 240 V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 36.67 W (Access)15.51 W (HDD Hibernation) |
| British Thermal Unit | 125.21 BTU/hr (Access)52.96 BTU/hr (HDD Hibernation) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification | FCCCEBSMIEACCCCKCVCCIRCM |
| Warranty | 3 YearsNotes: The warranty period starts from the purchase date as stated on your purchase receipt. |
| Environment | RoHS Compliant |
| Packaging Content | Main Unit X 1Accessory Pack X 1AC Power Adapter X 1AC Power Cord X 1RJ-45 LAN Cable X 2Quick Installation Guide X 1 |
| Optional Accessories | Expansion Units:Â DX5173.5″ SATA HDD:Â HAT53002.5″ SATA SSD:Â SAT5200M.2 2280 NVMe SSD:Â SNV3400VisualStation:Â VS960HD/VS360HDSurveillance Device License Pack |
