-5%
DS1821+
Model: DS1821+ – Synology NAS DiskStation Plus Series
Details: Synology NAS DiskStation DS1821+(Diskless),8-Bay; 4GB DDR4
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS1821+ Overview

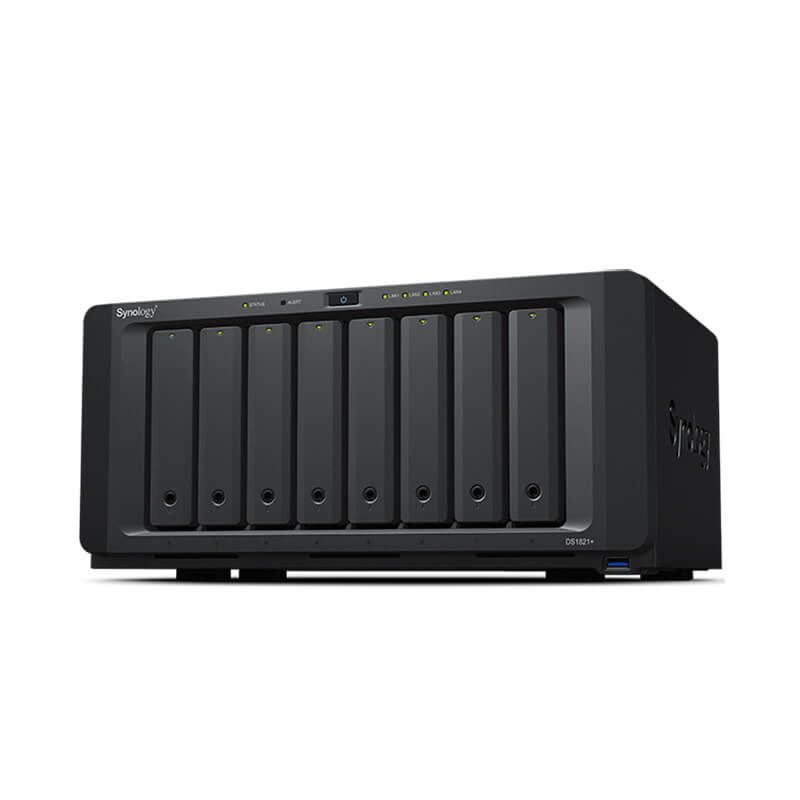

Quick Specs Figure 1 shows the appearance of DS1821+.
Table 1 shows the Quick Specs.
| CPU Model | AMD Ryzen V1500B |
| CPU Quantity | 1 |
| CPU Architecture | 64-bit |
| CPU Frequency | 4-core 2.2 GHz |
| Hardware Encryption Engine (AES-NI) | √ |
| System Memory | 4 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 4 GB (4 GB x 1) |
| Total Memory Slots | 2 |
| Maximum Memory Capacity | 32 GB (16 GB x 2) |
| Notes | * Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).* Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75ËšC; Humidity: 58.2-61.8% |
| Drive Bays | 8 |
| Maximum Drive Bays with Expansion Unit | 18 (DX517 x 2) |
| M.2 Drive Slots | 2 (NVMe) |
| Compatible Drive Type* | 3.5″ SATA HDD2.5″ SATA HDD2.5″ SATA SSDM.2 2280 NVMe SSD |
| Maximum Single Volume Size* | 108 TB |
| Hot Swappable Drive | √ |
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port* | 4 |
| eSATA Port | 2 |
| PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
| Internal Drives | BtrfsEXT4 |
| External Drives | BtrfsEXT4EXT3FATNTFSHFS+exFAT |
| Size (Height x Width x Depth) | 166 mm x 343 mm x 243 mm |
| Weight | 6 kg |
| System Fan | 120 mm x 120 mm x 2 pcs |
| Fan Speed Mode | Full-Speed ModeCool ModeQuiet Mode |
| Easy Replacement System Fan | √ |
| Brightness Adjustable Front LED Indicators | √ |
| Power Recovery | √ |
| Noise Level* | 22.2 dB(A) |
| Scheduled Power On / Off | √ |
| Wake on LAN / WAN | √ |
| Power Supply Unit / Adapter | 250 W |
| AC Input Power Voltage | 100 V to 240 V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 59.8 W (Access)26.18 W (HDD Hibernation) |
| British Thermal Unit | 204.05 BTU/hr (Access)89.33 BTU/hr (HDD Hibernation) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification | FCCCEBSMIEACCCCKCVCCIRCM |
| Warranty | 3 YearsNotes: The warranty period starts from the purchase date as stated on your purchase receipt. |
| Environment | RoHS Compliant |
| Packaging Content | Main Unit X 1Accessory Pack X 1AC Power Cord X 1RJ-45 LAN Cable X 2Quick Installation Guide X 1 |
Get more information
Do you have any question about the DS1821+?
Contact us now via Live Chat or sales@metafinitivetech.com
