DS220+
Model: DS220+ – Synology NAS DiskStation Plus Series
Details: Synology NAS DiskStation DS220+(Diskless), 2-Bay ;2G DDR4
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS220+ Overview

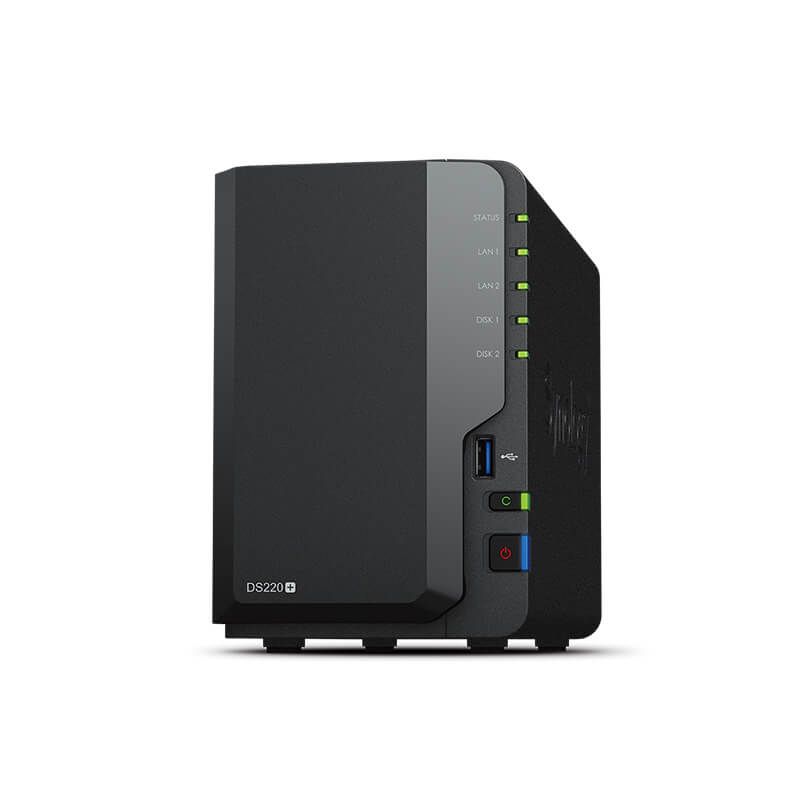

Quick Specs Figure 1 shows the appearance of DS220+.
Table 1 shows the Quick Specs.
| CPU Model | Intel Celeron J4025 |
| CPU Quantity | 1 |
| CPU Architecture | 64-bit |
| CPU Frequency | 2-core 2.0 (base) / 2.9 (burst) GHz |
| Hardware Encryption Engine (AES-NI) | √ |
| System Memory | 2 GB DDR4 non-ECC |
| Total Memory Slots | 1 |
| Maximum Memory Capacity | 6 GB (2 GB + 4 GB) |
| Notes | * Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.* The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed. |
| Drive Bays | 2 |
| Compatible Drive Type* (See all supported drives) | 3.5″ SATA HDD2.5″ SATA HDD2.5″ SATA SSD |
| Maximum Single Volume Size* | 108 TB |
| Hot Swappable Drive | √ |
| RJ-45 1GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port* | 2 |
| USB / SD Copy | √ |
| Internal Drives | BtrfsEXT4 |
| External Drives | BtrfsEXT4EXT3FATNTFSHFS+exFAT |
| Size (Height x Width x Depth) | 165 mm x 108 mm x 232.2 mm |
| Weight | 1.30 kg |
| System Fan | 92 mm x 92 mm x 1 pcs |
| Fan Speed Mode | Full-Speed ModeCool ModeQuiet Mode |
| Brightness Adjustable Front LED Indicators | √ |
| Power Recovery | √ |
| Noise Level* | 19.3 dB(A) |
| Scheduled Power On / Off | √ |
| Wake on LAN / WAN | √ |
| Power Supply Unit / Adapter | 60 W |
| AC Input Power Voltage | 100 V to 240 V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 14.69 W (Access)4.41 W (HDD Hibernation) |
| British Thermal Unit | 50.12 BTU/hr (Access)15.05 BTU/hr (HDD Hibernation) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification | FCCCEBSMIEACCCCKCVCCIRCM |
| Warranty | 2 YearsNotes: The warranty period starts from the purchase date as stated on your purchase receipt. |
| Environment | RoHS Compliant |
| Packaging Content | Main Unit X 1Accessory Pack X 1AC Power Adapter X 1AC Power Cord X 1RJ-45 LAN Cable X 2Quick Installation Guide X 1 |
| Optional Accessories | DDR4 non-ECC SODIMM: D4NESO-2666-4G3.5″ SATA HDD: HAT53002.5″ SATA SSD: SAT5200VisualStation: VS960HD/VS360HDSurveillance Device License PackNotes: All memory modules will operate at the maximum frequency specified by the CPU manufacturer. |
| Maximum Internal Volume Number | 64 |
| Supported RAID Type | √ |
| Synology Hybrid RAID | BasicJBODRAID 0RAID 1 |
| RAID Migration | Basic to RAID 1 |
| Volume Expansion with Larger HDDs | Synology Hybrid RAIDRAID 1 |
| Volume Expansion by Adding a HDD | Synology Hybrid RAID |
| File Protocol | SMB/AFP/NFS/FTP/WebDAV |
| Maximum Concurrent SMB/AFP/FTP Connections | 500 |
| Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) | 1,500 |
| Windows Access Control List (ACL) Integration | √ |
| NFS Kerberos Authentication | √ |
| Maximum Local User Accounts | 2,048 |
| Maximum Local Groups | 256 |
| Maximum Shared Folder | 256 |
| Maximum Shared Folder Sync Tasks | 8 |
| Synology High Availability | √ |
| Syslog Events per Second | 800 |
| Networking Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Supported Browsers | Google ChromeFirefoxMicrosoft EdgeSafari |
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 |
