DWDM-SFPGE-1558-98
Model: Huawei DWDM-SFPGE-1558-98 Optical Transceiver
Details: DWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1558.98nm,120km,LC)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DWDM-SFPGE-1558-98 Overview

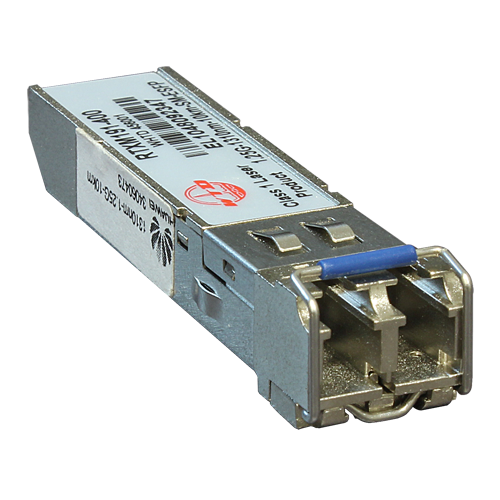

Quick Specs Figure 1 shows the appearance of DWDM-SFPGE-1558-98.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | DWDM-SFPGE-1558-98 |
| Product Type | DWDM Optical Transceiver |
| Form Factor | eSFP |
| Data Rate | 2.5 Gbps |
| Wavelength | 1558.98 nm |
| Transmission Distance | 120 km |
| Connector Type | LC |
| Cable Type | Single-mode Fiber |
| Temperature Range | -40°C to 85°C |
| Power Consumption | Less than 1.5W |
| Digital Diagnostics | Yes |
| Hot-Swappable | Yes |
| Compliance | IEC 60825-1 |
| Min. Output Power | -1 dBm |
| Max. Output Power | 4 dBm |
| Receiver Sensitivity | -24 dBm |
| Form Compliance | SFP MSA |
| EMI | Yes |
| Safety | Class 1 Laser Product |
