-5%
DWDM-XFP10G-1531-12
Model: Huawei DWDM-XFP10G-1531-12 Optical Transceiver
Details: DWDM Optical Transceiver,XFP,10G,Single-mode Module(1531.12nm,80km,LC)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DWDM-XFP10G-1531-12 Overview

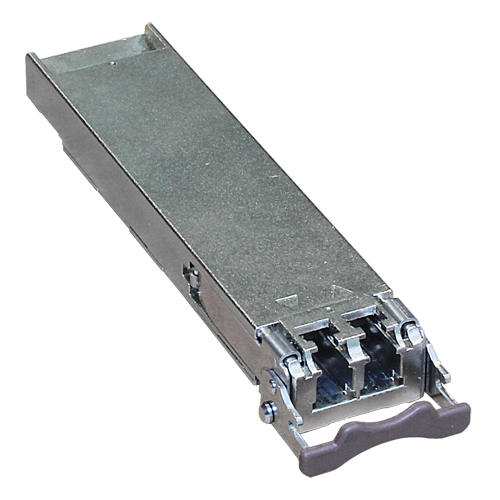

Quick Specs Figure 1 shows the appearance of DWDM-XFP10G-1531-12.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Product Name | DWDM-XFP10G-1531-12 |
| Type | DWDM Optical Transceiver |
| Form Factor | XFP |
| Data Rate | 10Gbps |
| Wave Length | 1531.12nm |
| Transmission Distance | 80km |
| Interface | LC |
| Transmitter Type | EML |
| Receiver Type | PIN |
| Operating Temperature | 0°C to 70°C |
| Power Supply Voltage | +3.3V |
| Power Consumption | °3.5W |
| Dissipation Power | 2.5W (Maximum) |
| Protocol | MSA Compliant |
| Bit Error Rate (BER) | 1×10^-12 |
| Digital Diagnostic | Yes |
| Hot Pluggable | Yes |
| EMI | FCC Part 15 Class B |
| Environmental Compliance | RoHS |
| MTBF | 1,000,000 hours |
