DWDM-XFP10G-1533-47
Model: Huawei DWDM-XFP10G-1533-47 Optical Transceiver
Details: DWDM Optical Transceiver,XFP,10G,Single-mode Module(1533.47nm,80km,LC)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DWDM-XFP10G-1533-47 Overview

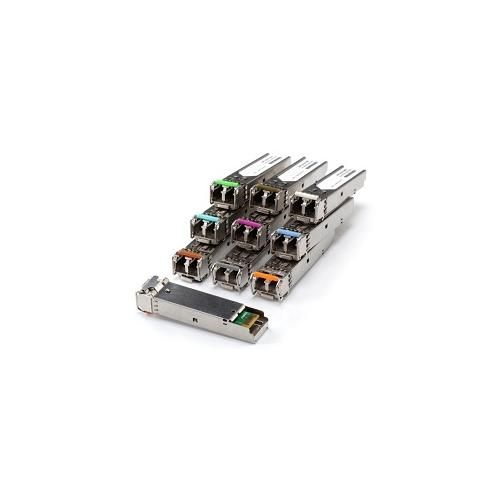

Quick Specs Figure 1 shows the appearance of DWDM-XFP10G-1533-47.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Product Name | DWDM-XFP10G-1533-47 |
| Module Type | XFP |
| Data Rate | 10 Gbps |
| Wavelength | 1533.47 nm |
| Distance | 80 km |
| Cable Type | Single-mode |
| Connector | LC |
| Form Factor | XFP |
| Optical Components | DFB Laser |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Transmitter Power | 0 dBm to 4 dBm |
| Receiver Sensitivity | -24 dBm |
| Power Consumption | Max 2.5 W |
| Diagnostics | Digital Diagnostic Monitoring (DDM) |
| Compliance | RoHS, MSA Compliant |
| MTBF | 1,000,000 hours |
| DDM Function | Transmit Power, Output Power, Temperature, Supply Voltage, Bias Current |
| Application | DWDM Networking |
| Protocol | 10G Ethernet, 10G Fiber Channel, SONET/SDH |
