DWDM-XFP10G-1550-92
Model: Huawei DWDM-XFP10G-1550-92 Optical Transceiver
Details: DWDM Optical Transceiver,XFP,10G,Single-mode Module(1550.92nm,80km,LC)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DWDM-XFP10G-1550-92 Overview

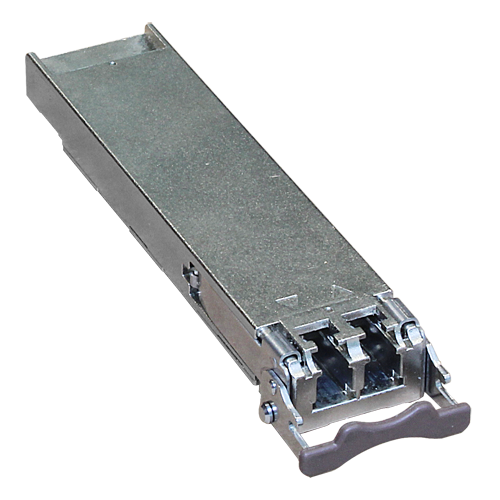

Quick Specs Figure 1 shows the appearance of DWDM-XFP10G-1550-92.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | DWDM-XFP10G-1550-92 |
| Type | DWDM Optical Transceiver |
| Form Factor | XFP |
| Data Rate | 10G |
| Optical Wavelength | 1550.92nm |
| Maximum Distance | 80km |
| Connector Type | LC |
| Transmission Media | Single-mode |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Maximum Power Consumption | 3.5W |
| Hot Swappable | Yes |
| Digital Diagnostics | Yes |
| Compliance | MSA Compliant |
| Receiver Sensitivity | -14 dBm |
| Output Power | -1 to +4 dBm |
| Modulation Format | NRZ |
| EMI Standards | FCC Part 15 Class B |
| ESD Protection | 2kV (HBM) |
