DXS-5000-54S/AF
Model: DXS-5000-54S/AF – D-Link Data Center Switches
Details: D-Link 48 10G SFP+ optical ports + 6 40G QSFP+ optical ports, data center switch, support Leaf-Spine, Top-of-Rack (ToR) architecture, support OpenFlow, VXLAN, FCoE, DCB, support DLINK OS and third-party OS. Dual AC power supply modules, front and rear ventilation.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DXS-5000-54S/AF Overview

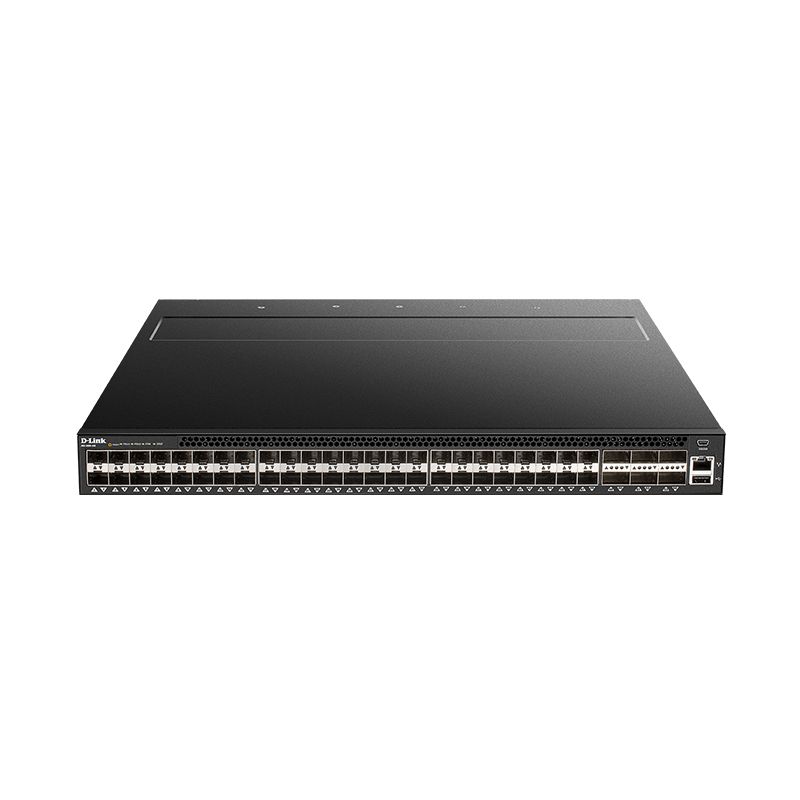

Quick Specs Figure 1 shows the appearance of DXS-5000-54S/AF.
Table 1 shows the Quick Specs.
| 10G SFP+ ports | 48 |
| 40G QSFP+ ports | 6 |
| USB 2.0 port | 1 |
| mini-USB port | 1 |
| RJ-45 Management port | 1 |
| Switch Capacity | 1.44 Tbps |
| Max. Packet Forwarding Rate | 1,071 Mpps |
| Maximum Heat Dissipation | 1,006.58 BTU/hr |
| Maximum Power Consumption | 295 W |
| MTBF | 205,000 hours |
| Acoustics | Max: 74 dB Min: 62 dB |
| Packet Buffer Memory | 12 MB |
| Power Input | 1+1 redundant power supply design Input: 100 to 240 V AC, 50/60 Hz |
| Operating Humidity | 5% to 95% RH, non-condensing |
| MAC Address Table | 288K |
| Max. Forwarding Rate | 1,071 Mpps (1.071 Bpps) |
| Interfaces | 48 x 10G SFP+ ports 6 x 40G QSFP+ ports 1 x USB 2.0 port 1 x mini-USB port 1 x RJ-45 Management port |
| Heat Dissipation (Max.) | 1006.58 BTU/hr |
| Dimensions (W x D x H) | 440 x 406 x 44 mm (17.32 x 16 x 1.73 inch) |
| Storage Humidity | 5% to 95% RH, non-condensing |
| Fans | 4 x fans |
| Console Port | 1 x mini-USB console port |
| OOB Management Port | 1 x 10/100/1000BASE-T RJ-45 port |
| Switching Capacity | 1.44 Tbps |
| Storage Temperature | -40 to 70 ºC (-40 to 158 ºF) |
| Operating Temperature | 0 to 45 ºC (32 to 113 ºF) |
