-5%
E7W85A
Model: E7W85A – HPE NAS StoreEasy Storages
Details: HP StoreEasy 1840 Storage
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
E7W85A Overview

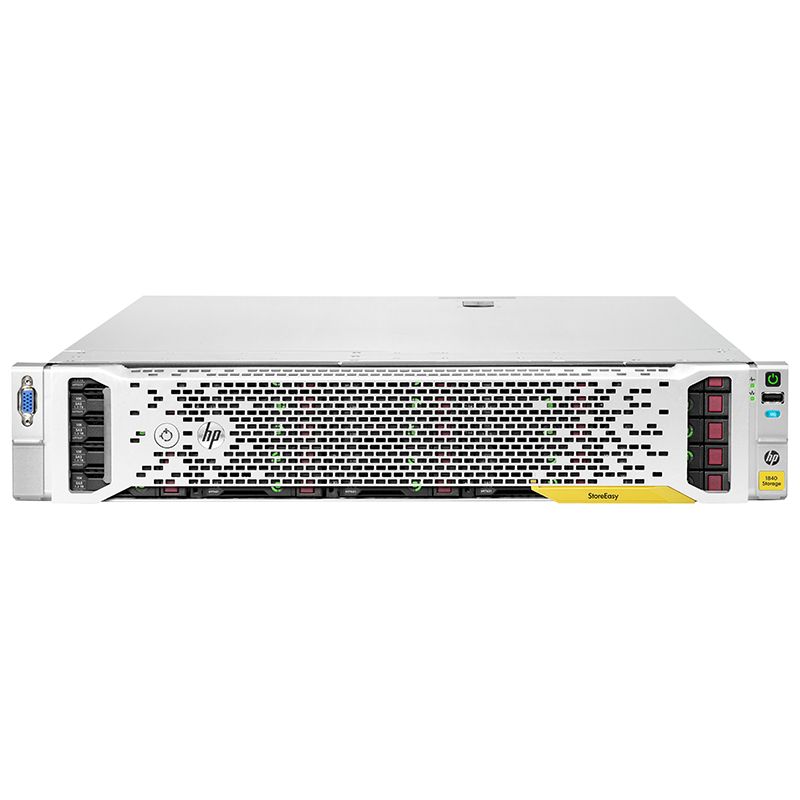

Quick Specs Figure 1 shows the appearance of E7W85A.
Table 1 shows the Quick Specs.
| Product Model | E7W85A |
| Product Name | HP StoreEasy 1840 Storage |
| Processor | 2 x Intel Xeon E5-2620 v4 8-core processors |
| Memory | 64 GB (8 x 8 GB) DDR4 Registered DIMMs |
| Number of Bays | 12 LFF or 24 SFF hot-plug drive bays |
| Supported Drives | HDDs: 1 TB, 2 TB, 3 TB, 4 TB, 6 TB, 8 TB, 10 TB, 12 TB, 14 TB, 16 TB; SSDs: 240 GB, 480 GB, 960 GB, 1.92 TB, 3.84 TB |
| Drive Interface | SAS, SATA, SSD |
| Maximum Capacity | Up to 576 TB (using 24 x 24 TB HDDs) |
| Host Connectivity | 4 x 10 Gb/sec Ethernet ports, 2 x 10 Gb/sec iSCSI ports, 2 x 1 Gb/sec Ethernet ports for management |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Expansion | Up to 7 additional disk enclosures (E7W89A) for a total of 192 LFF or 384 SFF drives |
| Supported Operating Systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Management | HP StoreEasy Management Console, Command Line Interface, SNMP, REST API |
| Supported Protocols | CIFS/SMB, NFS, FTP, HTTP, HTTPS, iSCSI, SNMP, SMTP, Telnet, SSH, SFTP |
| Redundancy Features | Redundant hot-swappable power supplies and cooling fans |
| Dimensions (W x D x H) | 445 mm x 742.2 mm x 132.1 mm |
| Power Consumption | Maximum power consumption of 1200 W |
| Operating Temperature | 10°C to 35°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% (non-condensing) |
Get more information
Do you have any question about the E7W85A?
Contact us now via Live Chat or sales@metafinitivetech.com
