-5%
E8KE-X-LPUF-101
Model: E8KE-X-LPUF-101 03056630 Huawei USG9500 Data Center Firewall Line Processing Unit
Details: Flexible Card Line Processing Unit(LPUF-101,4 sub-slots)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
E8KE-X-LPUF-101 Overview

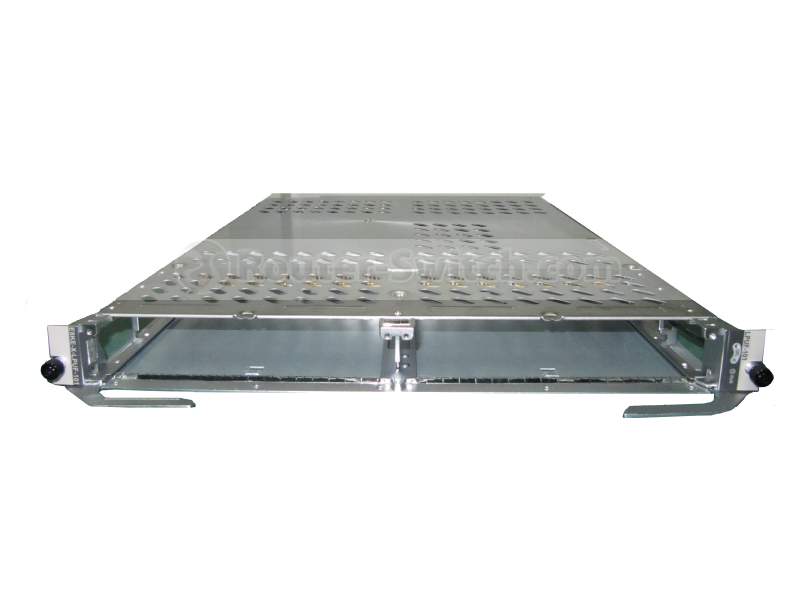

Quick Specs Figure 1 shows the appearance of E8KE-X-LPUF-101.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | E8KE-X-LPUF-101 |
| Type | Flexible Card Line Processing Unit |
| Sub-slots | 4 |
| Interface Type | Ethernet |
| Data Rate | 100 Gbps per slot |
| Processing Capability | 400 Gbps total |
| Form Factor | 1U |
| Power Consumption | 125W |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (HxWxD) | 44 mm x 442 mm x 620 mm |
| Regulatory Compliance | CE, FCC, RoHS |
| Power Supply | AC 100-240V, 50/60Hz |
| MTBF | 100,000 hours |
| MTTR | 2 hours |
| Packet Buffer | 9 MB |
| MAC Addresses | 32K |
| VLAN IDs | 4K |
| Supported Protocols | IPv4, IPv6, MPLS, VRRP |
