EH1BS9703E00

Original price was: $2,038.00.Current price is: $1,936.10.

Model: EH1BS9703E00 Huawei S9700 Series Switch
Details: S9703 Assembly Chassis, 3 Slots
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: EH1BS9703E00 Categories: , ,
Description

EH1BS9703E00 Overview

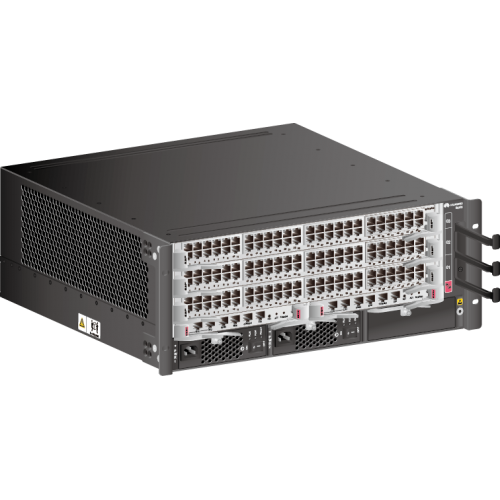

Quick Specs Figure 1 shows the appearance of EH1BS9703E00.

Table 1 shows the Quick Specs.

Switching capacity 2.88/5.76
Packet forwardingrate 2160 Mpps
Service slots 3
Wireless networkmanagement Native ACAP access control, AP region management, and AP profile managementRadio profile management, uniform static configuration, and centralized dynamicmanagementBasic WLAN services, QoS, security, and user management
User management unified user management802.1x, MAC address, and Portal authenticationTraffic- and time-based accountingUser authorization based on user groups, domains, and time ranges
iPCA qualityawareness Marking real service packets to obtain real-time count of dropped packets andpacket loss ratioCounting number of dropped packets and packet loss ratio on devices and L2/L3networks
SVF 2.0 virtualization Virtualizing access switches (ASs) and APs into one logical device to simplifymanagement and maintenanceTwo layers of ASs allowed in an SVF systemThird-party devices allowed between SVF parent and clients
VLAN Supports adding access, trunk, and hybrid interfaces to VLANsSupports the default VLANSupports VLAN switchingSupports QinQ and selective QinQSupports MAC address-based VLAN assignment
MAC address Supports automatic learning and aging of MA C addressesSupports static, dynamic, and blackhole MAC address entriesSupports packet filtering based on sour ce MAC addressesSupports MAC address limiting based on ports and VL ANs
STP/ERPS Supports STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)Supports BPDU protection, root protection, and loop protectionSupports BPDU tunnelERPS (G.8032)
IP routing Supports IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-ISSupports IPv6 dynamic routing protocols, such as, RIPng, OSPFv3, ISISv6, andBGP4+
Multicast Supports IGMP v1/v2/v3, IGMPv1/v2/v3 snoopingSupports PIM-SM, PIM-DM, PIM-SSMSupports MSDP, MBGPSupports prompt leaveSupports multicast traffic controlSupports multicast querierSupports suppression on multicast packetsSupports multicast CACSupports multicast ACL
MPLS Supports basic MPLS functionsSupports MPLS OAMSupports MPLS TESupports MPLS VPN/VLL/VPLS
Reliability Supports LACP and E-TrunkSupports VRRP and BFD for VRRPSupports BFD for BGP/IS-IS/OSPF/static routeNSR, NSF, and GR for BGP/IS-IS/OSPF/LDPSupports TE FRR and IP FRRSupports Ethernet OAM (IEEE 802.3ah and 802.1ag) (Hardware level)HSRSupports ITU-Y.1731Supports DLDP
QoS Supports traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4protocols, and 802.1p prioritySupports actions of ACL, CAR, re-mark, and scheduleSupports queue scheduling algorithms, such as SP, WRR, DRR, SP+WRR, andSP+DRRSupports congestion avoidance mechanisms, such as WRED and tail dropSupports H-QoSSupports traffic shaping
Networksynchronization Ethernet synchronization1588v2
Dimensions (H x W xD in mm) 175 x 442 x 489, 4U
Chassis weight(empty) 11 kg
Power supplycapability of theequipment 2200W
