Model: EH1D2G24SED0 Huawei S9700 Series Switch Line Card
Details: 24-Port 100/1000BASE-X Interface Card(ED,SFP)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
EH1D2G24SED0 Overview

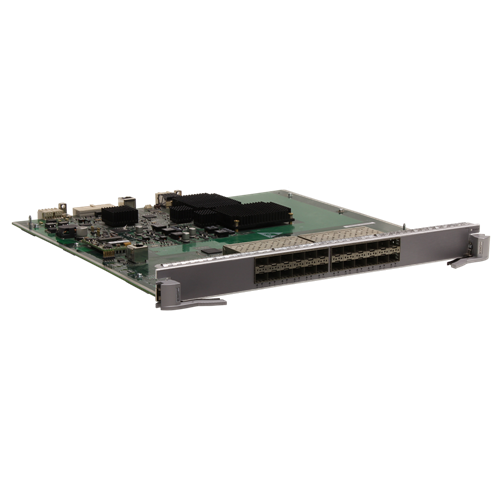

Quick Specs Figure 1 shows the appearance of EH1D2G24SED0.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | EH1D2G24SED0 |
| Interface Type | 100/1000BASE-X |
| Port Count | 24 |
| Connector Type | SFP |
| Standard Compliance | IEEE 802.3z |
| Data Transfer Rate | 1 Gbps |
| Form Factor | Interface Card |
| Protocol | Ethernet |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Humidity Range | 5% to 95% non-condensing |
| Power Consumption | 30W |
| Dimensions | 220 mm x 210 mm x 20 mm |
| Mounting Type | Chassis-based |
| Hot Swappable | Yes |
| Cooling | Passive |
| Compatibility | Huawei Switches |
| Warranty | 1 Year |
| MTBF | 200,000 hours |
| LED Indicators | Yes |
