EH1D2G24TFA0
Model: EH1D2G24TFA0 Huawei S9700 Series Switch Line Card
Details: 24-Port 10/100/1000BASE-T Interface Card(FA,RJ45)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
EH1D2G24TFA0 Overview

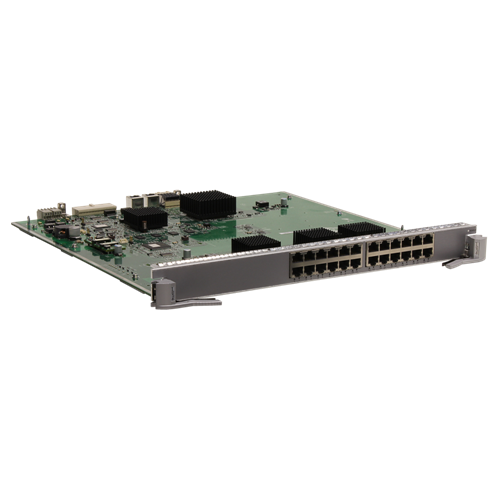

Quick Specs Figure 1 shows the appearance of EH1D2G24TFA0.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | EH1D2G24TFA0 |
| Type | Interface Card |
| Port Quantity | 24 |
| Port Speed | 10/100/1000BASE-T |
| Connector Type | RJ45 |
| Card Format | FA |
| Maximum Transmission Distance | 100 meters |
| Compatibility | Compatible with Huawei switches |
| LED Indicators | Link/Act |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 10% to 90% (non-condensing) |
| Dimensions (HxWxD) | 40 mm x 210 mm x 235 mm |
| Power Consumption | 10W |
| Cooling | Passive Cooling |
| Subtending | Supports |
| MAC Table | Up to 16K |
| VLAN | Supports VLAN feature |
| QoS | Supports QoS feature |
