EH1D2G48TEA0
Model: EH1D2G48TEA0 Huawei S9700 Series Switch Line Card
Details: 48-Port 10/100/1000BASE-T Interface Card(EA,RJ45)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
EH1D2G48TEA0 Overview

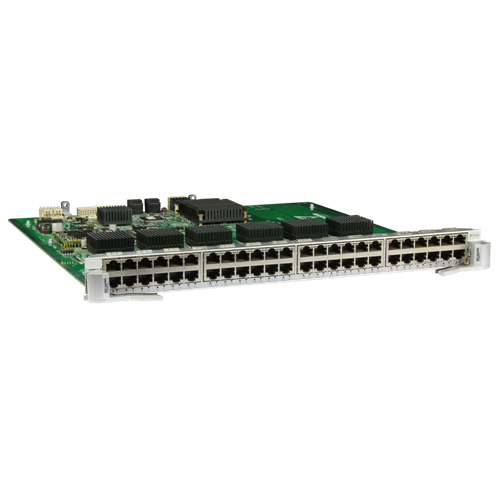

Quick Specs Figure 1 shows the appearance of EH1D2G48TEA0.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | EH1D2G48TEA0 |
| Interface Type | 10/100/1000BASE-T |
| Number of Ports | 48 |
| Port Connector Type | RJ45 |
| Form Factor | Interface Card |
| Transmission Media | Twisted Pair |
| Port Speed | 10/100/1000 Mbps |
| Auto-negotiation | Supported |
| MAC Address Table Size | 16K |
| Jumbo Frame Size | 9 KB |
| Operating Temperature | -5°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Humidity | 5% to 90% (non-condensing) |
| Power Consumption | Up to 45W |
| Network Standards | IEEE 802.3, 802.3u, 802.3ab |
| Network Management | SNMP, RMON, Telnet, CLI |
| Safety Compliance | CE, FCC, RoHS |
| Dimensions | 44.2 mm x 442 mm x 420 mm |
