-5%
EH1D2G48TED0
Model: EH1D2G48TED0 Huawei S9700 Series Switch Line Card
Details: 48-Port 10/100/1000BASE-T Interface Card(ED,RJ45)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
EH1D2G48TED0 Overview

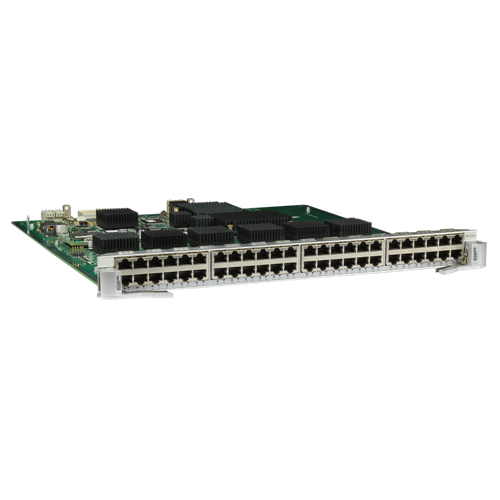

Quick Specs Figure 1 shows the appearance of EH1D2G48TED0.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Product Name | EH1D2G48TED0 |
| Ports | 48 |
| Interface Type | 10/100/1000BASE-T |
| Port Type | RJ45 |
| Transmission Method | Ethernet |
| Form Factor | Plug-in module |
| Enclosure Type | Internal |
| Data Transfer Rate | 1 Gbps |
| Compatibility | Huawei switches |
| Power Consumption | 37.8W |
| Dimensions (HxWxD) | 21.3 mm x 396 mm x 213 mm |
| Operating Temperature Range | -10°C to 50°C |
| Storage Temperature Range | -40°C to 70°C |
| Relative Humidity (Non-operating) | 5% to 95% |
| MTBF (Mean Time Between Failures) | 240,000 hours |
| Cooling | Passive |
| Compliance Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| LED Indicators | Link/Activity |
| EMI & Safety Certifications | CE, FCC, RoHS |
| Warranty | 1 year |
