EH1D2X40SFC0
Model: EH1D2X40SFC0 Huawei S9700 Series Switch Line Card
Details: 40-Port 10GBASE-X Interface Card(FC,SFP+)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
EH1D2X40SFC0 Overview

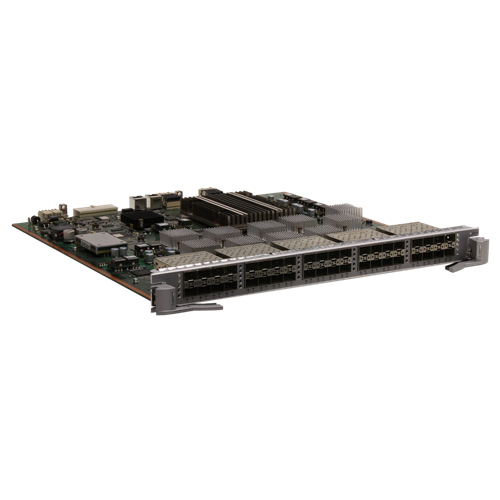

Quick Specs Figure 1 shows the appearance of EH1D2X40SFC0.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | EH1D2X40SFC0 |
| Interface Type | 10GBASE-X |
| Number of Ports | 40 |
| Port Type | SFP+ |
| Form Factor | Expansion Module |
| Supported Transceivers | SFP+, SFP |
| Data Transfer Rate | 10Gbps |
| Protocols | Ethernet, Fiber Channel (FC) |
| Power Consumption | 85W |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| MTBF | 1,000,000 hours |
| Dimensions (HxWxD) | 40mm x 353mm x 367mm |
| RoHS Compliance | Yes |
| Warranty | 1 Year |
| LED Indicators | Link/Activity |
| Installation | Rack-mountable |
| Cooling | Fans |
| Compliance Standards | IEEE 802.3ae, IEEE 802.3aq |
