Model: EH1D2X48SEC0 Huawei S9700 Series Switch Line Card
Details: 48-Port 10GBASE-X Interface Card(EC,SFP+)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
EH1D2X48SEC0 Overview

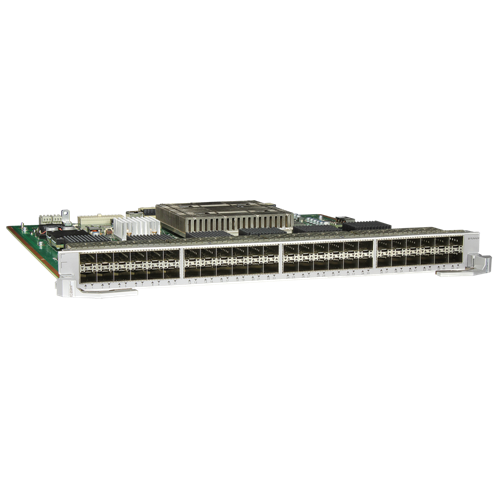

Quick Specs Figure 1 shows the appearance of EH1D2X48SEC0.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | EH1D2X48SEC0 |
| Interface Type | 10GBASE-X |
| Port Count | 48 |
| Compatible Module | SFP+ |
| Form Factor | Plug-in Module |
| Environmental Condition | Operating Temperature: 0°C to 40°C |
| Power Consumption | Typical: 150W |
| Transmission Rate | 10 Gbps |
| Data Transfer Type | Full Duplex |
| Compliance Standards | IEEE 802.3ae, IEEE 802.3ak |
| Optical Reach | Up to 300m |
| Connector Type | LC |
| Operating Humidity | 5% to 95% (Non-Condensing) |
| Supported Technologies | Ethernet |
| Storage Temperature | -40°C to 70°C |
| Dustproof & Waterproof Level | IP20 |
| Cooling Method | Air Cooling |
| Product Dimensions (HxWxD) | 11.4 x 40 x 44 cm |
| Mounting Type | Rack Mount |
| SFP+ Transceiver Channels | Single-Mode and Multi-Mode |
| Warranty | 1 Year |
