ES-16-150W
Details: Fully managed, Gigabit PoE+ switch with (16) Gigabit RJ45 ports and (2) SFP ports.It can replace US-16-150W.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ES-16-150W Overview

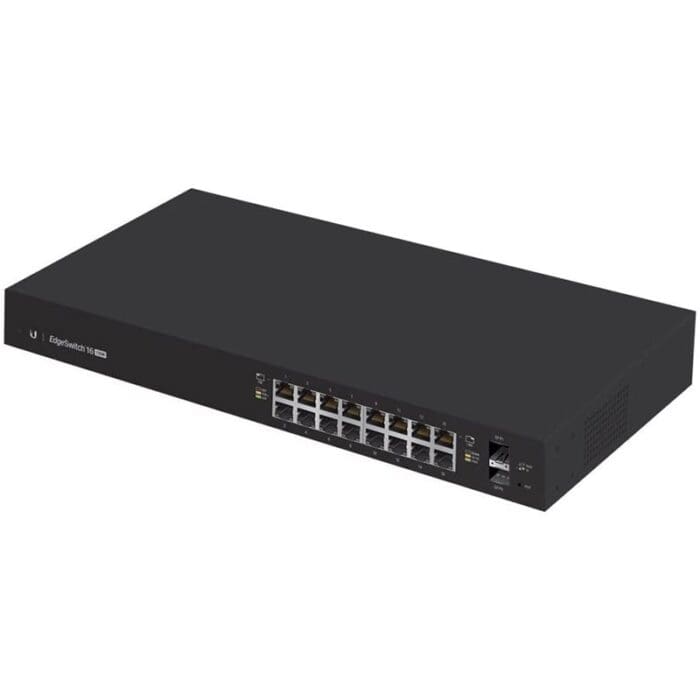

Quick Specs Figure 1 shows the appearance of ES-16-150W.
Table 1 shows the Quick Specs.
| Dimensions | 443 x 43 x 221 mm(17.44 x 1.69 x 8.70″) |
| Total Non-Blocking Line Rate | 18 Gbps |
| Max. Power Consumption | 150W |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 150W DC |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| LEDs Per PortRJ45 Data PortsSFP Data Ports | PoE, Speed/Link/ActivitySpeed/Link/Activity |
| Networking Interfaces | (16) 10/100/1000 Mbps RJ45 Ports(2) 1 Gbps SFP Ports |
| Management Interface | UART Console Out-of-Band,Ethernet In-Band |
| PoE Interfaces | PoE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-) 24VDC Passive PoE (pins 4, 5+; 7, 😎 |
| Voltage Range802.3at Mode24V Passive PoE | 50-57V20-27V |
| Max. Wattage per PortPoE+Passive PoE | 34.2W17W |
| Rack-Mount | Yes, 1U High |
| Operating Temperature | -5 to 40° C(23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
