ES-5XP
Model: ES-5XP – Ubiquiti Enterprise Switches Series
Details: Ubiquiti / UBNT 5-Port Enterprise Advanced Gigabit PoE Managed Switch, Repalce ES-5XP TS-5-POE Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ES-5XP Overview

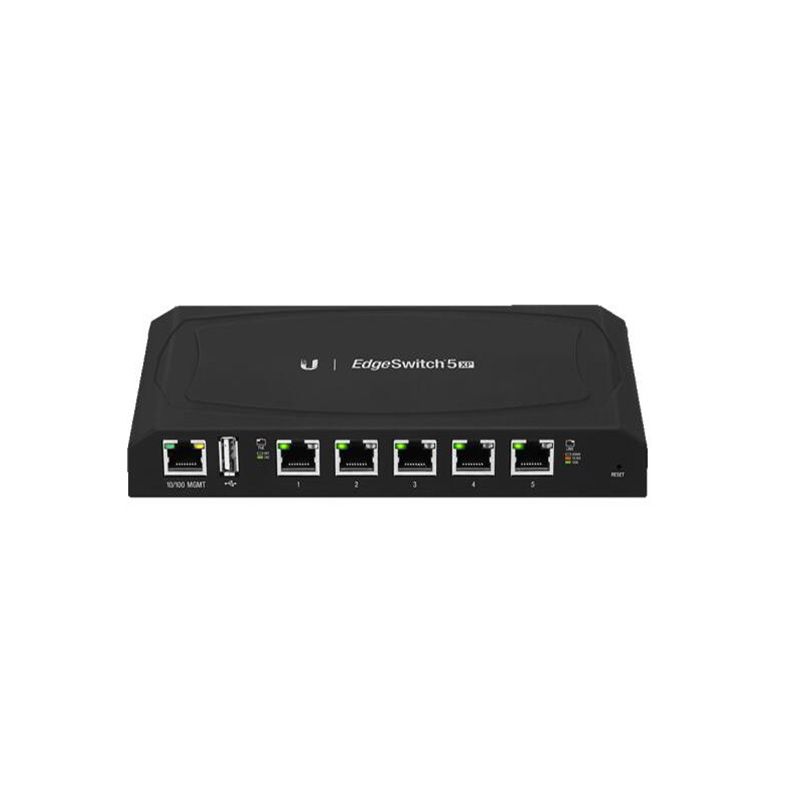

Quick Specs Figure 1 shows the appearance of ES-5XP.
Table 1 shows the Quick Specs.
| Model | ES-5XP |
| Ports | 5 x Gigabit Ethernet Ports |
| Power Over Ethernet (PoE) | 24V Passive PoE |
| Total Non-Blocking Throughput | 5 Gbps |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.44 Mpps |
| Power Supply | 24VDC, 2.5A Power Adapter (Included) |
| Max. Power Consumption | 60W |
| PoE Budget | 50W |
| Management Interface | Web-Based Management Console |
| Network Protocols | 802.1Q VLAN, STP, RSTP, MSTP |
| PoE Method | Passive |
| Dimensions | 197 x 87.5 x 27.3 mm |
| Operating Temperature | -10 to 45��C (14 to 113��F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Advanced Features | VLAN configuration, Port Configuration, Network Monitoring, System Management |
| Product Description | Advanced managed switch with PoE capabilities designed for high-speed connectivity and power over Ethernet support. |
| Performance Features | Low-latency switching, energy-efficient design, QoS support, VLAN support |
| Warranty | 1 Year Limited Warranty |
