-5%
ES-8-150W
Model: ES-8-150W – Ubiquiti EdgeSwitch 8 150W PoE+ Switch
Details: The ES-8-150W is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ES-8-150W Overview

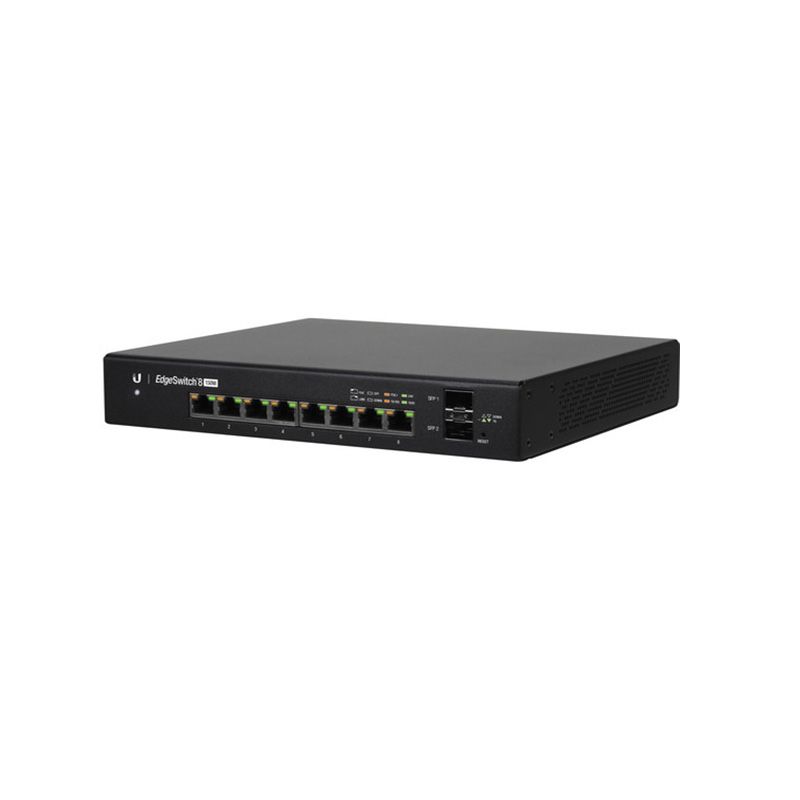

Quick Specs Figure 1 shows the appearance of ES-8-150W.
Table 1 shows the Quick Specs.
| Dimensions | 204 x 43 x 235 mm(8.03 x 1.69 x 9.25″) |
| Total Non-Blocking Line Rate | 10 Gbps |
| Max. Power Consumption | 20W (Excludes PoE Output) |
| AC | 100 to 240VAC, 50-60 Hz |
| DC | 42 to 56VDC |
| Power Supply | Internal AC/DC 150W |
| System | Status |
| RJ45 Data Ports | PoE; Link/Speed/Activity |
| SFP Data Ports | Link/Speed/Activity |
| Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports(2) 1 Gbps SFP Ports |
| Management Interface | Ethernet In-Band, UART Console Out-of-Band |
| PoE Interfaces | (8) IEEE 802.3at/af 2-Pair (+1, 2; -3, 6)(8) 24V/0.7A 2-Pair (+4, 5; -7, 8) |
| ESD/EMP Protection | ± 24kV Air, ± 24kV Contact |
| Internal AC/DC @ 150W | -25 to 45° C (-13 to 113° F) |
| Internal AC/DC @ 100W | -25 to 55° C (-13 to 131° F) |
| External DC | -25 to 60° C (-13 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
