-5%
ES0D0G48SA00
Model: ES0D0G48SA00 Huawei S7700 Series Switch Line Card
Details: 48-Port 100/1000BASE-X Interface Card(EA,SFP)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ES0D0G48SA00 Overview

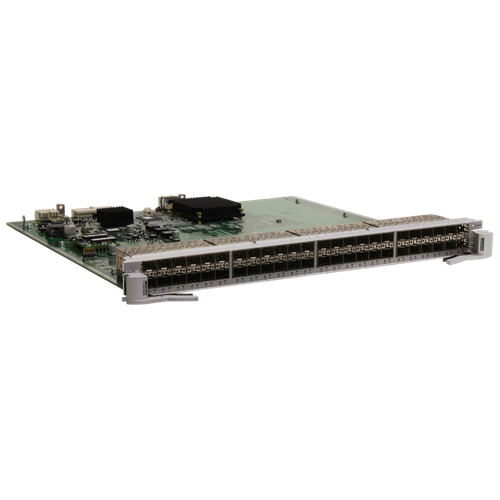

Quick Specs Figure 1 shows the appearance of ES0D0G48SA00.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | ES0D0G48SA00 |
| Port Count | 48 |
| Port Type | 100/1000BASE-X |
| Interface Type | SFP |
| Layer Support | Layer 2 |
| Switching Capacity | 320 Gbit/s |
| MAC Address Table | 64K |
| Jumbo Frame Support | Up to 9 KB |
| Power Consumption | Maximum 65W |
| Operating Temperature | -5°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5% to 95% |
| Dimensions (H x W x D) | 40 mm x 430 mm x 500 mm |
| Compliance | RoHS, CE, FCC |
| MTBF | Over 200,000 hours |
| Cooling | 2 Fans |
| Management | SNMP, CLI, Web |
| Forwarding Rate | 240 Mpps |
| Network Protocols | STP, RSTP, MSTP |
