Model: ES0W2PSD0150 Huawei Power Module
Details: 150W DC Power Module(Black)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ES0W2PSD0150 Overview

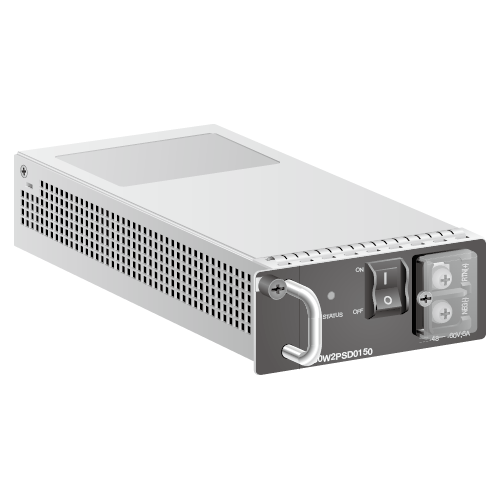

Quick Specs Figure 1 shows the appearance of ES0W2PSD0150.
Table 1 shows the Quick Specs.
| Part Number | 02310JFD |
| Description | 150W DC Power Module(Black) |
| Product Category | Power Module |
| Product Series | S5700 |
| EAN | 6920702724735 |
| UOM | PCS |
| Rated input voltage range | -48 V DC to -60 V DC |
| Maximum input voltage range | -36 V DC to -72 V DC |
| Maximum Input current | 6 A |
| Maximum output current | 12.5 A |
| Rated output voltage | 12V |
| Maximum output power | 150 W |
| Pack Weight(kg) | 1.2 |
| Pack Volume(m^3) | 0.004536 |
| Pack Dimension (D*W*H mm) | 270*210*80 |
| Net Dimension (D*W*H mm) | 205*100*40(8.1 in. x3.9 in. x 1.6 in.) |
