ES5D00G4SC00
Model: ES5D00G4SC00 Huawei S5700 Series Switch Line Card
Details: 4 Gig SFP interface card(used in S5700HI series)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ES5D00G4SC00 Overview

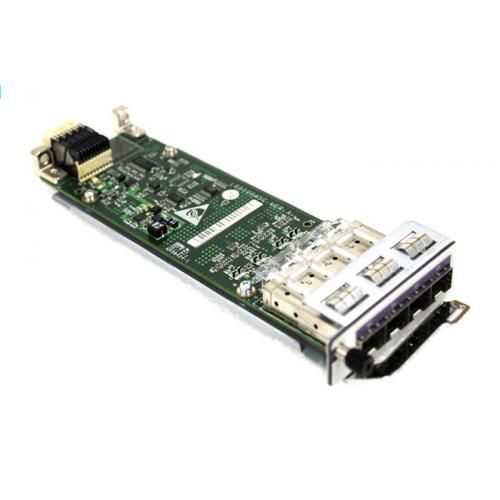

Quick Specs Figure 1 shows the appearance of ES5D00G4SC00.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | ES5D00G4SC00 |
| Interface Type | SFP |
| Number of Ports | 4 |
| Compatible Series | S5700HI |
| Transmission Rate | 1 Gbps or 10 Gbps |
| Full Duplex | Yes |
| Port Type | Fiber |
| Hot Swappable | Yes |
| Wavelength | 850 nm (multimode), 1310 nm (singlemode) |
| Maximum Transmission Distance | 80 km (singlemode), 550 m (multimode) |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Power Consumption | Less than 10W |
| EMI Standard | EN 55022 |
| Safety Standard | EN 60950-1 |
| Dimensions (H x W x D) | 23.2 mm x 88.9 mm x 211 mm |
| Compliance | RoHS, CE |
| MTBF | More than 200,000 hours |
