ES5D21G08T00
Model: ES5D21G08T00 Huawei S5700 Series Switch Line Card
Details: 8 Ethernet 10/100/1000 ports interface card(used in S5710EI series)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ES5D21G08T00 Overview

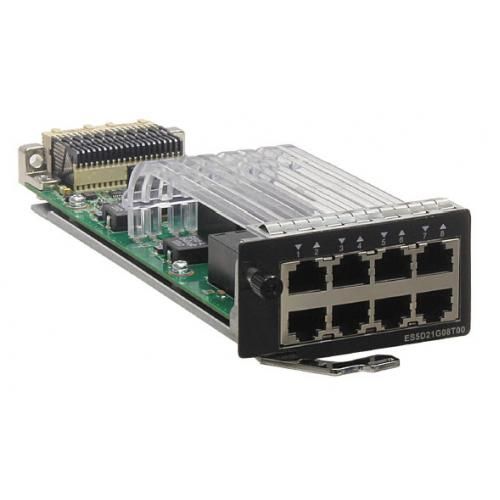

Quick Specs Figure 1 shows the appearance of ES5D21G08T00.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | ES5D21G08T00 |
| Interface Type | Ethernet 10/100/1000 ports |
| Number of Ports | 8 |
| Applicable Series | S5710EI series |
| Port Speed | 10/100/1000 Mbps |
| Ethernet Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Form Factor | Plug-in module |
| Dimensions (H x W x D) | 23 mm x 167 mm x 231 mm |
| Power Consumption | 20 W |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Warranty | 1 Year |
| MTBF | Over 200,000 hours |
| Cooling Method | Passive cooling |
| Compliance | CE, FCC, RoHS |
| Port Protection | Overvoltage Protection |
| Installation Method | Slide-in installation |
| LED Indicators | Link/Activity |
| Traffic Management | Port-based Quality of Service (QoS) |
