ES5D21G16S00
Model: ES5D21G16S00 Huawei S5700 Series Switch Line Card
Details: 16 Gig SFP Interface Card(used in S5710HI series)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ES5D21G16S00 Overview

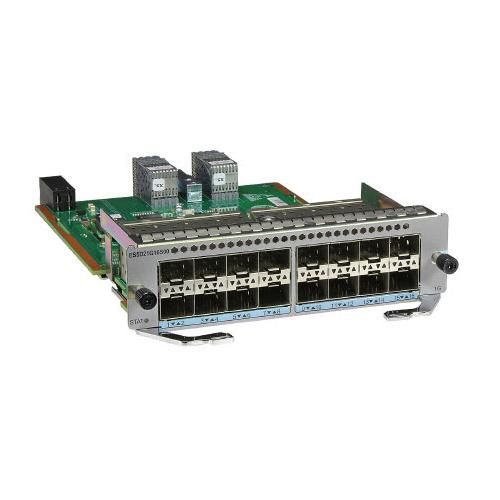

Quick Specs Figure 1 shows the appearance of ES5D21G16S00.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Product Name | 16 Gig SFP Interface Card |
| Model | ES5D21G16S00 |
| Used In | S5710HI Series |
| Port Type | SFP |
| Number of Ports | 16 |
| Transmission Rate | 1 Gbps per port |
| Maximum Power Consumption | 30 W |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (HxWxD) | 40 mm x 348 mm x 220 mm |
| MTBF | Over 300,000 hours |
| MTTR | Under 2 hours |
| Certification | CE, FCC, RoHS |
| Connector Type | SFP fiber module |
| Hot Swappable | Yes |
| Power Supply | AC 100-240V, 50/60Hz |
| Cooling Method | Integrated fan |
| Application | High Density Data Centers |
| Warranty | 1 Year Limited Warranty |
