-5%
ES5D21X02T01
Model: ES5D21X02T01 Huawei S5700 Series Switch Line Card
Details: 2 10 Gig RJ45 Interface Card(used in S5720EI series)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ES5D21X02T01 Overview

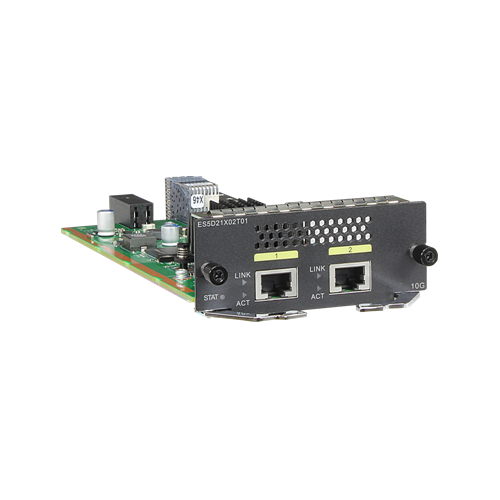

Quick Specs Figure 1 shows the appearance of ES5D21X02T01.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | ES5D21X02T01 |
| Interface Type | 10 Gigabit RJ45 |
| Number of Ports | 2 |
| Compatibility | S5720EI series |
| Transmission Rate | 10 Gbps |
| Networking Standard | IEEE 802.3an |
| Connector Type | RJ45 |
| Form Factor | Plug-in module |
| Power Consumption | 10 W (max) |
| Dimensions | 130 mm x 110 mm |
| Operating Temperature Range | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| MTBF | 1,200,000 hours |
| Certifications | CE, FCC, ROHS |
| LED Indicators | Port Link, Activity |
| EMC Standards | EN 55022, EN 55024 |
| Cooling System | Passive |
| Warranty | 3 years |
| Hot-swappable | Yes |
Get more information
Do you have any question about the ES5D21X02T01?
Contact us now via Live Chat or sales@metafinitivetech.com
