-5%
eSFP-GE-ZX100-SM1550
Model: Huawei eSFP-GE-ZX100-SM1550 02315206 Optical Transceiver
Details: eSFP, GE, Single-mode Module(1550nm,100km,LC)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
eSFP-GE-ZX100-SM1550 Overview

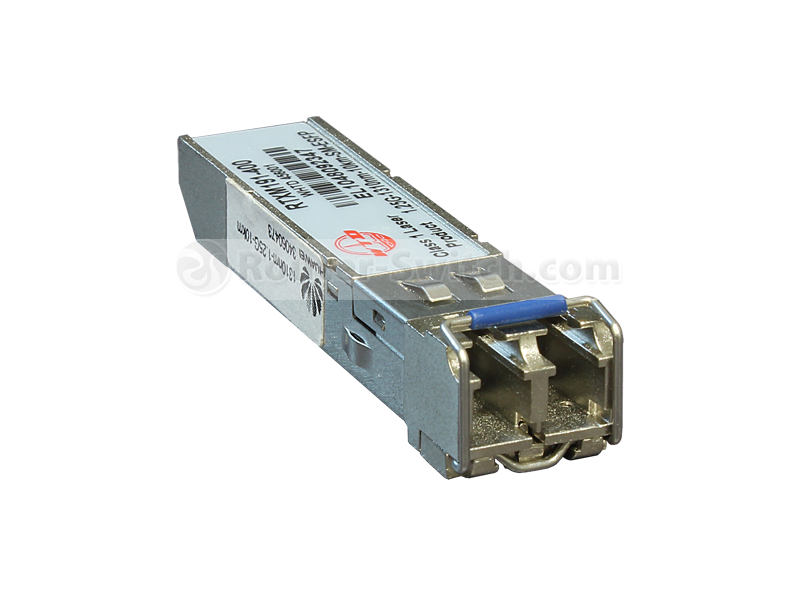

Quick Specs Figure 1 shows the appearance of eSFP-GE-ZX100-SM1550.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | eSFP-GE-ZX100-SM1550 |
| Form Factor | eSFP |
| Transmission Distance | 100 km |
| Wave Length | 1550 nm |
| Connector Type | LC |
| Fiber Type | Single-mode |
| Data Rate | 1.25 Gbps (Gigabit Ethernet) |
| Temperature Range | -10°C to 70°C |
| Power Supply | 3.3V |
| DOM Support | Yes |
| Power Consumption | < 1.5W |
| Compatibility | Multi-Vendor |
| Regulation Compliance | CE, FCC, RoHS |
| EMI | Class B |
| Receiver Sensitivity | < -28 dBm |
| Transmission Power | 0 to 5 dBm |
| MTBF | 1,000,000 hours |
| Warranty | 1 Year |
| Firmware Upgrade | Online Upgrade Capability |
