Sold out
EX2300-24T-DC
Model: EX2300-24T-DC – Juniper EX2300 Series Ethernet Switches
Details: EX2300 24-PORT DC
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
EX2300-24T-DC Overview

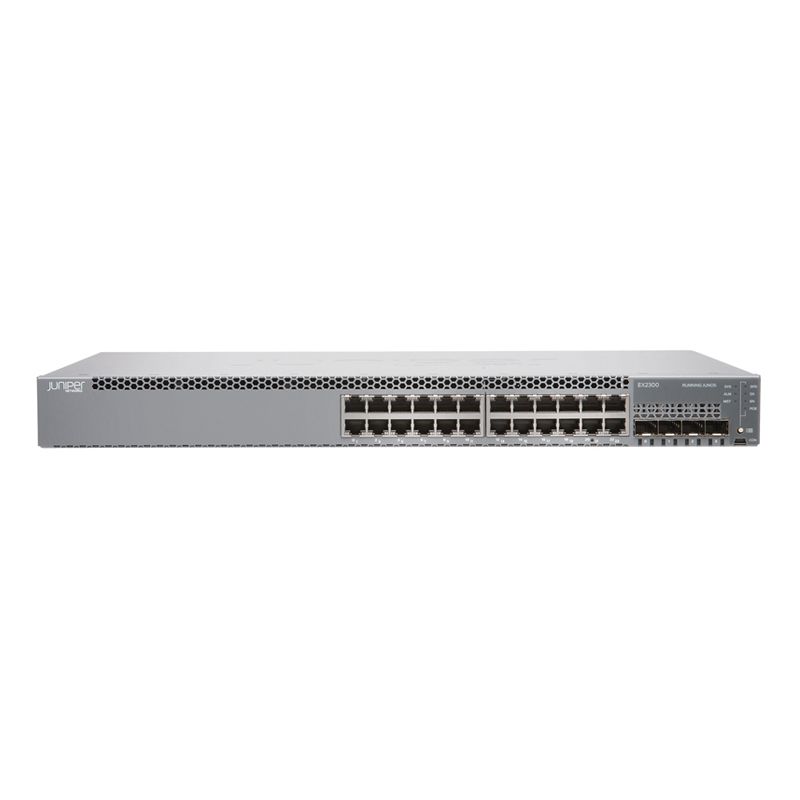

Quick Specs Figure 1 shows the appearance of EX2300-24T-DC.
Table 1 shows the Quick Specs.
| Brand | Juniper |
| Model | EX2300-24T-DC |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.7 Mpps |
| Primary Port Configuration | 24 10/100/1000BASE-T ports |
| Power Supply | DC power |
| Redundant Power Supply | Yes, with external power supply |
| Management | Juniper Networks Junos OS |
| Stacking | Up to 4 units per stack |
| Maximum Stack Bandwidth | 40 Gbps |
| Dimensions | 17.5 x 10.5 x 1.75 inches |
| Operating Temperature | 0��C to 40��C |
| Storage Temperature | -40��C to 70��C |
| Humidity (Operating) | 10% to 85% RH |
| Maximum Power Consumption | 85W |
| Ports with Power over Ethernet (PoE) | None |
| Environmental Certification | RoHS-6 |
| Hardware Warranty | Limited lifetime |
| MAC Address Table Size | 16K entries |
| VLAN IDs | 4093 VLAN IDs supported |
| Jumbo Frame Support | Yes, up to 9216 bytes |
Get more information
Do you have any question about the EX2300-24T-DC?
Contact us now via Live Chat or sales@metafinitivetech.com
