-5%
EX2300-48T-VC
Model: EX2300-48T-VC – Juniper EX2300 Series Ethernet Switches
Details: EX2300 48-PORT NON-POE+ W/ VC LICENSE
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
EX2300-48T-VC Overview

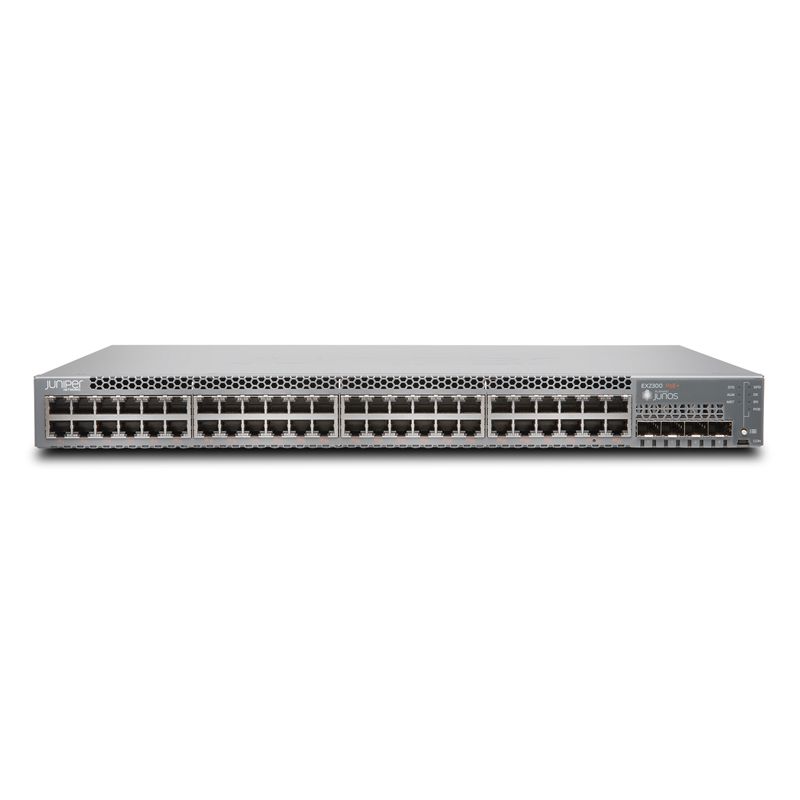

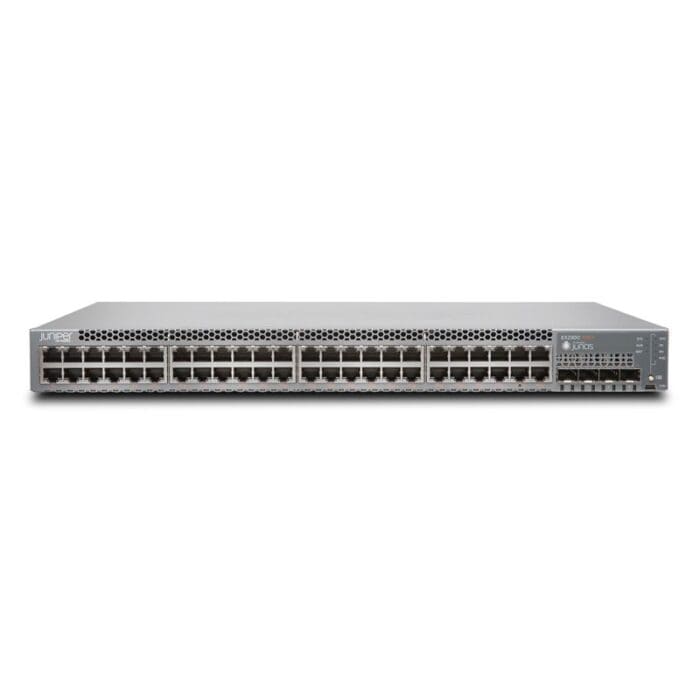

Quick Specs Figure 1 shows the appearance of EX2300-48T-VC.
Table 1 shows the Quick Specs.
| Brand | Juniper |
| Model | EX2300-48T-VC |
| Ports | 48 |
| Port Type | RJ-45 |
| Uplink Ports | 4 SFP/SFP+ |
| Virtual Chassis | Supported (with license) |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130 Mpps |
| MAC Address Table Size | 16K |
| Input Voltage | AC: 100-240V |
| Power Consumption | 55W |
| Dimensions (WxDxH) | 17.5 x 10.4 x 1.75 inches |
| Operating Temperature | 32��F to 113��F (0��C to 45��C) |
| MTBF | 521,000 hours |
| Layer | Layer 2 and Layer 3 |
| ACLs | Yes |
| Jumbo Frames | Up to 9216 bytes |
| Spanning Tree Protocol | RSTP, MSTP |
| QoS | 8 queues per port |
| Security Features | DHCP Snooping, Dynamic ARP Inspection |
| Management | Web GUI, CLI, SNMP |
Get more information
Do you have any question about the EX2300-48T-VC?
Contact us now via Live Chat or sales@metafinitivetech.com
