EX2300-C-12T
Model: EX2300-C-12T – Juniper EX2300 Compact Fanless 12-port Switch
Details: EX2300 Compact Fanless 12-port 10/100/1000BaseT, 2 x 1/10G SFP/SFP+ (optics sold separately)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
EX2300-C-12T Overview

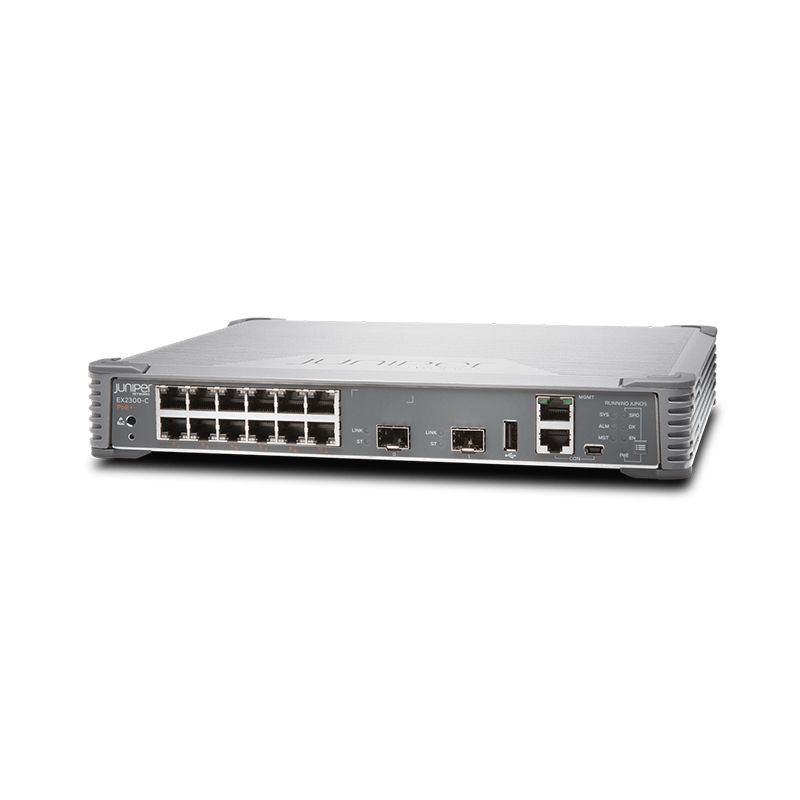

Quick Specs Figure 1 shows the appearance of EX2300-C-12T.
Table 1 shows the Quick Specs.
| Brand | Juniper |
| Model | EX2300-C-12T |
| Form Factor | Compact, Fanless |
| Port Configuration | 12-port 10/100/1000BaseT |
| Uplinks | 2 x 1/10G SFP/SFP+ (optics sold separately) |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.67 Mpps |
| Power Supply | External, AC-powered |
| Power Consumption | 30W |
| Layer | Layer 2 and Layer 3 |
| Management | CLI, Web Interface, SNMP |
| Junos OS | Supported |
| Virtual Chassis | Supported, up to 4 switches |
| MAC Address Table | 16K entries |
| Buffer Size | 1.5 MB |
| Dimensions (W x D x H) | 10.68 x 9.44 x 1.44 inches |
| Operating Temperature | 0�� to 40�� C |
| Storage Temperature | -40�� to 70�� C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| MTBF | 325,000 hours |
