-5%
EX3400-24T-DC
Model: EX3400-24T-DC – Juniper EX3400 Series Ethernet Switches
Details: EX 3400 24-port 10/100/1000BaseT Ethernet Switch with 4 SFP+ and 2 QSFP+ uplink ports and DC power supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
EX3400-24T-DC Overview

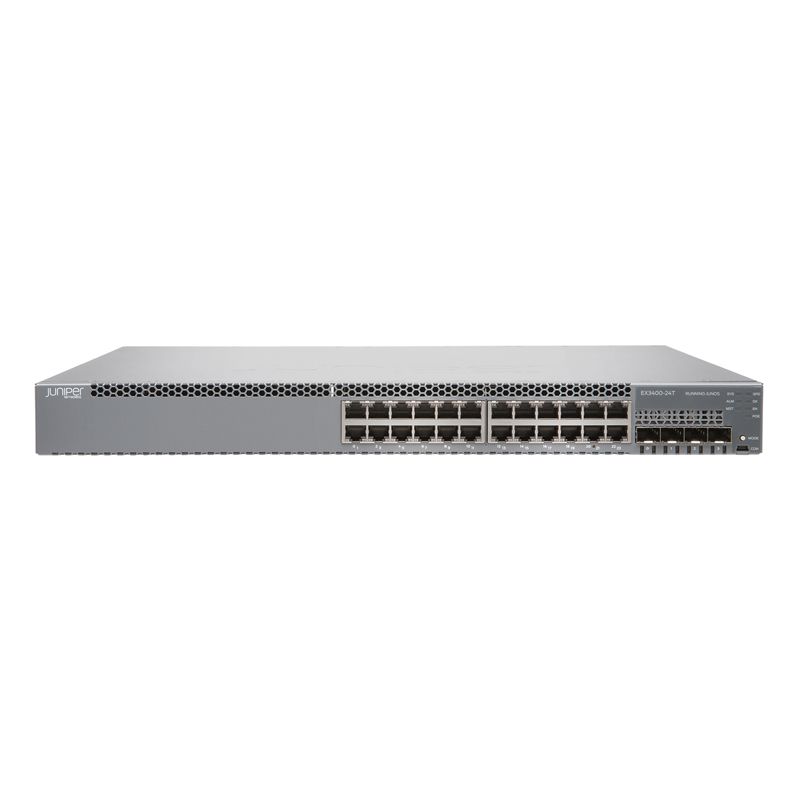

Quick Specs Figure 1 shows the appearance of EX3400-24T-DC.
Table 1 shows the Quick Specs.
| Airflow Direction | Front to back airflow |
| Installed Qty | 1 |
| Clock Speed | 1 GHZ |
| Installed Size | 2 GB, 2 GB |
| Performance | Switching capacity (64-byte packet size): 288 Gbps, Throughput: 214 Mpps |
| Type | Internal power supply |
| Subcategory | Network hubs and switches |
| Subtype | Gigabit Ethernet |
| Form Factor | Rack-mountable |
| Stackable | Stackable |
| Max Units In A Stack | 10 |
| Ports Qty | 24 |
| Advanced Switching | Layer 3 |
| Routing Protocol | CIDR, IS-IS, MSDP, RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9216 bytes |
| Manageable | Yes |
| Qty | 24 |
| Interfaces | 1 x 100Base-TX RJ-45 management, 1 x serial management, 2 x 40Gbit LAN QSFP+ uplink/stacking, 24 x 1000Base-T RJ-45, 4 x 10Gbit LAN SFP+ uplink/stacking |
| Hot-Plug | Hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Max Supported Qty | 2 |
| Power Provided | 150 watt |
| Power Consumption Operational | 100 watt |
| Width | 17.2 inch |
| Depth | 13.8 inch |
| Height | 1.7 inch |
Get more information
Do you have any question about the EX3400-24T-DC?
Contact us now via Live Chat or sales@metafinitivetech.com
