EX4300-32F
Model: EX4300-32F – Juniper EX4300 Series Ethernet Switches
Details: EX4300 32-PRT GBASEX SFP
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
EX4300-32F Overview

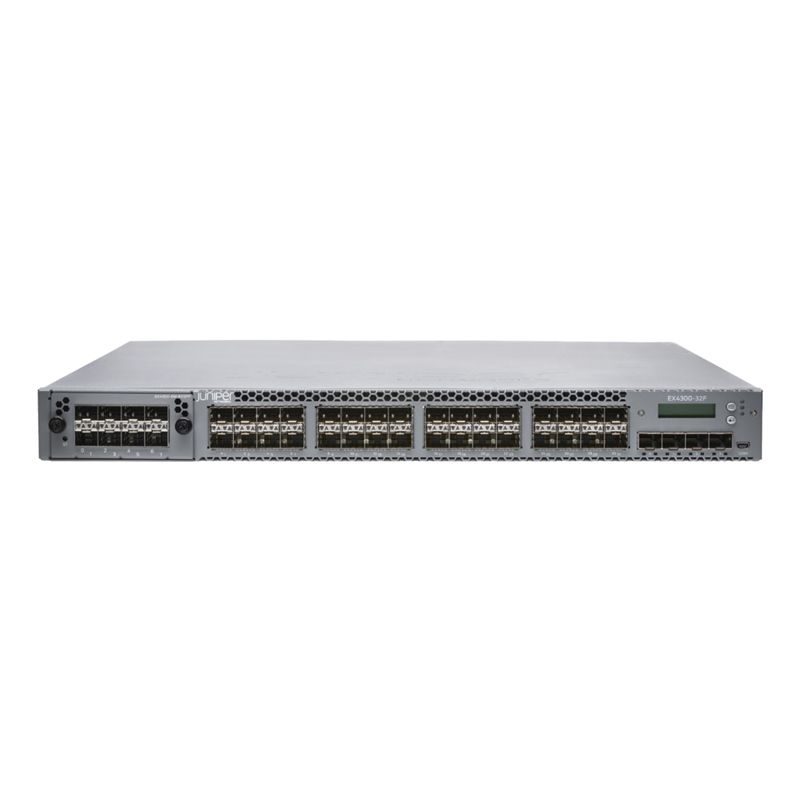

Quick Specs Figure 1 shows the appearance of EX4300-32F.
Table 1 shows the Quick Specs.
| Description | Juniper EX4300 switch with 32-port 100/1000BASE-X SFP, 4x10GBASE-X SFP+, 2x40GBASE-X QSFP+, and 350 W AC PS (optics sold separately) |
| Form factor | Fixed platformVirtual Chassis configuration consisting of 10 switches |
| Dimensions (W x H x D) | 17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm)1 rack unit |
| Backplane speed | 320 Gbps (Virtual Chassis) |
| Data rate | 464 Gbps |
| Throughput | 345 Mpps (wire speed) |
| 40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | 4 per switchUp to 20 in Virtual Chassis configuration (assuming 2 ports per switch are used for forming Virtual Chassis) |
| 100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
| Resiliency | Internal, hot-swappable redundant power supply; field-replaceable fans; graceful Routing Engine switchover (GRES) in Virtual Chassis configuration |
| Operating system | Junos OS |
| Traffic monitoring | sFlow |
| Quality-of-service (QoS) queues/port | 12 |
| MAC addresses | 64,000 |
| Jumbo frames | 9216 bytes |
| IPv4 unicast/multicast routes | 32,000/8000 |
| IPv6 unicast/multicast routes | 18,000/4000 |
| Number of VLANs | 4093 |
| ARP entries | 64,000 |
