EX4600-40F-AFO
Model: EX4600-40F-AFO – Juniper EX4600 Series Ethernet Switches
Details: EX4600. 24 + 4X 40G + 2M. AFO
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
EX4600-40F-AFO Overview

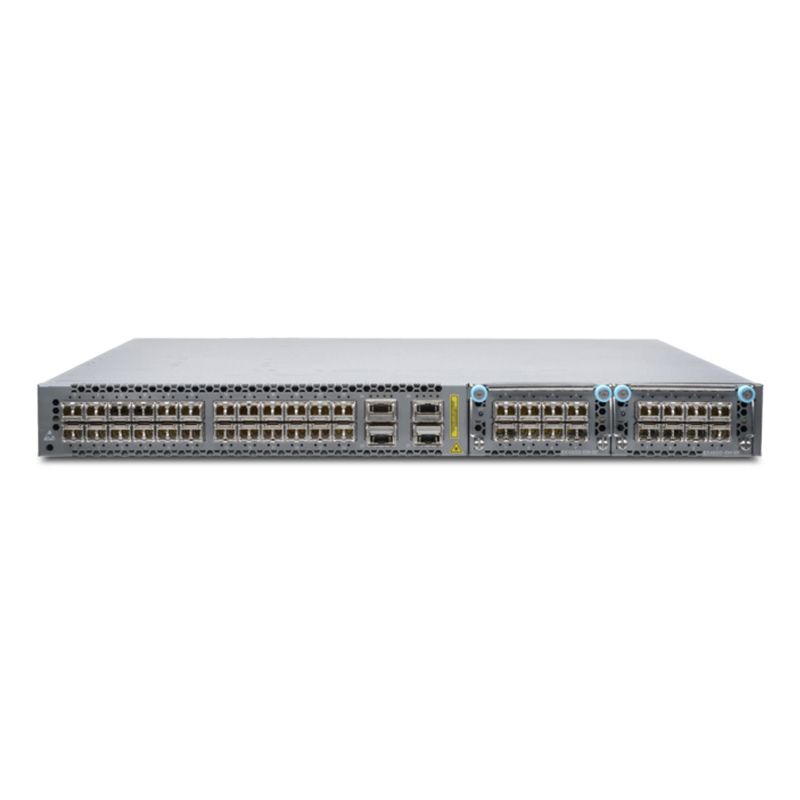

Quick Specs Figure 1 shows the appearance of EX4600-40F-AFO.
Table 1 shows the Quick Specs.
| Description | 24 SFP+/SFP ports, 4 QSFP+ ports, 2 expansion slots,redundant fans, 2 AC power supplies, 2 power cords,4-post rack mount kit, and front to back airflow |
| Form factor | Fixed platformVirtual Chassis configuration consisting of up to 10 switches |
| Dimensions (W x H x D) | 17.4 x 1.7 x 20.5 in (44.2 x 4.3 x 52.1 cm)1 rack unit |
| Backplane speed | 960 Gbps |
| Data rate | 1.44 Tbps |
| Throughput | 1.07 Bpps |
| 10/100/1000BASE-T port densities | 20 (200 in a Virtual Chassis configuration) |
| 10GBASE-X port densities | 40 (400 in a Virtual Chassis configuration) |
| 40GBASE QSFP + port densities | 12 (120 in a Virtual Chassis configuration) |
| 100GBASE CFP port densities | N/A |
| Resiliency | Redundant internal load-sharing power supplies; redundant variable-speed fans |
| Operating system | Junos OS |
| Traffic monitoring | sFlow |
| QoS queues/port | 8 |
| MAC addresses | 288,000 |
| Jumbo frames | 9216 bytes |
| IPv4 unicast/multicast routes | 128,000/104,000 |
| IPv6 unicast/multicast routes | 64,000/52,000 |
| Number of VLANs | 4096 |
| ARP entries | 48,000 |
