FAN-40SB-F
Model: FAN-40SB-F Huawei CE5800 Series Data Center Switch Fan Box
Details: Fan box(SB,Front to Back,FAN panel side intake)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FAN-40SB-F Overview

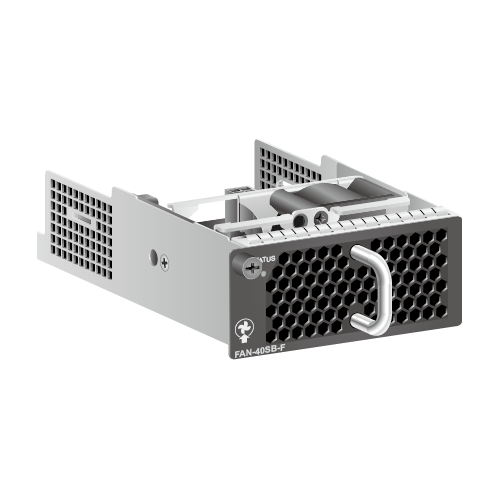

Quick Specs Figure 1 shows the appearance of FAN-40SB-F.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | FAN-40SB-F |
| Type | Fan Box |
| Orientation | Front to Back |
| Airflow Direction | FAN panel side intake |
| Compatibility | Works with Huawei Cooling System |
| Material | Plastic and Metal |
| Noise Level | Low Noise Operation |
| Power Consumption | 50W |
| Cooling Capacity | Up to 200 CFM |
| Operating Temperature Range | 0°C to 40°C |
| Storage Temperature Range | -40°C to 70°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions | 120 mm x 120 mm x 38 mm |
| Connector Type | 4-pin connector |
| Voltage | 12V DC |
| Current | 4.17A |
| Safety Certification | CE, FCC, RoHS |
| Mounting Options | Screw Mount |
| Color | Black |
| Warranty | 1 Year |
