-5%
FG-1000D
Model: FG-1000D – Fortinet NGFW High-end Series FortiGate 1000D
Details: Fortinet FG-1000D, 2 x 10GE SFP+ slots, 16 x GE SFP Slots, 16 x GE RJ45 ports, 2 x GE RJ45 Management ports, SPU NP6 and CP8 hardware accelerated, 1 x 256GB SSD onboard storage, dual AC power supplies
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FG-1000D Overview

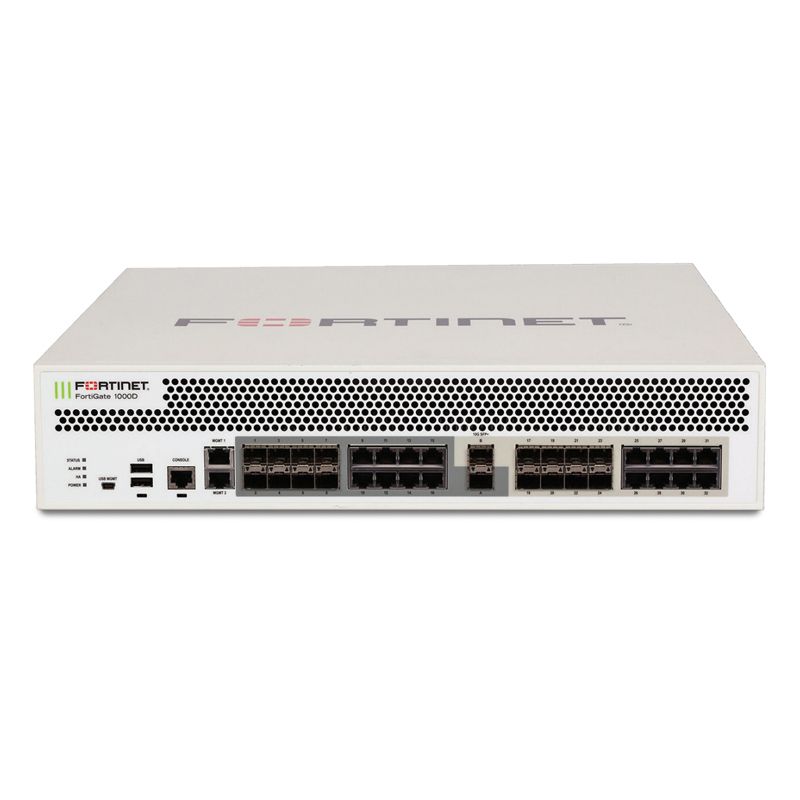

Quick Specs Figure 1 shows the appearance of FG-1000D.
Table 1 shows the Quick Specs.
| Type | FORTIGATE 1000D |
| Hardware Accelerated 10 GE SFP+ /GE SFP Slots | 2 |
| Hardware Accelerated GE SFP Slots | 16 |
| Hardware Accelerated GE RJ45 Ports | 16 |
| GE RJ45 Management / HA Ports | 2 |
| USB Ports (Client/Server) | 1 / 2 |
| Console Port | 1 |
| Onboard Storage | 1x 240 GB SSD |
| Included Transceivers | 0 |
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 52 / 52 / 33 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 52 / 52 / 33 Gbps |
| Firewall Latency (64 byte, UDP) | 3 μs |
| Firewall Throughput (Packet per Second) | 49.5 Mpps |
| Concurrent Sessions (TCP) | 11 Million |
| New Sessions/Second (TCP) | 280,000 |
| Firewall Policies | 100,000 |
| IPsec VPN Throughput (512 byte) | 25 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| SSL-VPN Throughput | 3.6 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 5.0 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 2,700 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 800,000 |
| Application Control Throughput (HTTP 64K) | 14 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 11 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 250 |
| Maximum Number of FortiSwitches Supported | 128 |
| Maximum Number of FortiAPs (Total / Tunnel) | 4,096 / 1,024 |
| Maximum Number of FortiTokens | 20,000 |
| Maximum Number of Registered FortiClients | 20,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| IPS Throughput | 6 Gbps |
| NGFW Throughput | 5 Gbps |
| Threat Protection Throughput | 4 Gbps |
| Height x Width x Length | 3.48 x 17.20 x 17.95 inches88.5 x 437 x 456 mm |
| Form Factor | Rack Mount, 2 RU |
| AC Power Supply | 100–240V AC, 50–60 Hz |
| Power Consumption (Average / Maximum) | 153 W / 220.8 W |
| Current (Maximum) | 100V / 5A, 240V / 3A |
| Heat Dissipation | 753.40 BTU/h |
| Redundant Power Supplies | Yes, Hot swappable |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 53.3 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
