-5%
FG-101F
Model: FG-101F – Fortinet Next general Firewalls -Middle range-100E Series
Details: Fortinet FortiGate 101F FG-101F, 22x GE RJ45 ports (including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 16x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10 GE SFP+ FortiLinks, 480 GB onboard storage, dual power supplies redundancy. Max managed FortiAPs (Total / Tunnel) 64 / 32. Need to buy with License.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FG-101F Overview

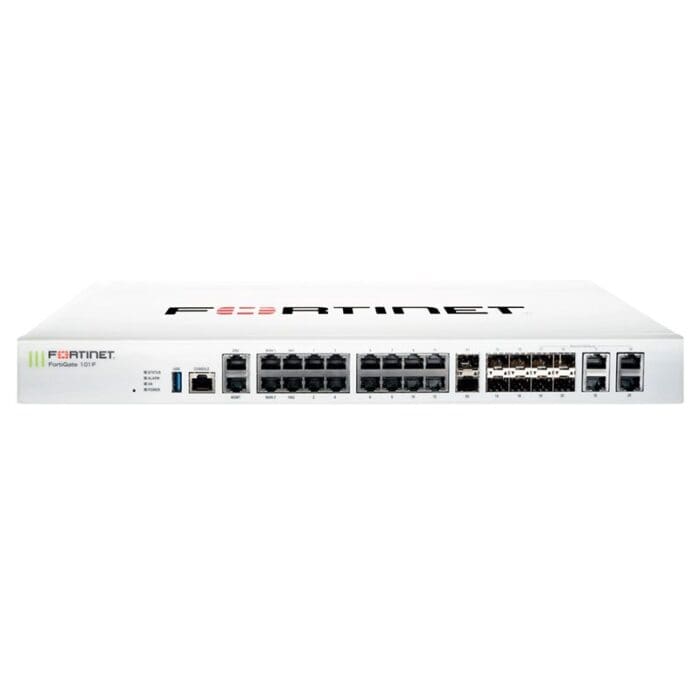

Quick Specs Figure 1 shows the appearance of FG-101F.
Table 1 shows the Quick Specs.
| Hardware Accelerated GE RJ45 Ports | 12 |
| Hardware Accelerated GE RJ45 Management/ HA/ DMZ Ports | 1 / 2 / 1 |
| Hardware Accelerated GE SFP Slots | 4 |
| Hardware Accelerated 10 GE SFP+ FortiLink Slots (default) | 2 |
| GE RJ45 WAN Ports | 2 |
| GE RJ45or SFP Shared Ports * | 4 |
| USB Port | 1 |
| Console Port | 1 |
| Onboard Storage | 1x 480 GB SSD |
| Included Transceivers | 0 |
| IPS Throughput2 | 2.6 Gbps |
| NGFW Throughput2, 4 | 1.6 Gbps |
| Threat Protection Throughput2, 5 | 1 Gbps |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 20 / 18 / 10 Gbps |
| Firewall Latency (64 byte, UDP) | 4.97μs |
| Firewall Throughput (Packet per Second) | 15 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 56,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte)1 | 11.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,500 |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 |
| SSL-VPN Throughput | 1 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput (IPS, avg. HTTPS)3 | 1 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 1,800 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS)3 | 135,000 |
| Application Control Throughput (HTTP 64K)2 | 2.2 Gbps |
| CAPWAP Throughput (HTTP 64K) | 15 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 32 |
| Maximum Number of FortiAPs (Total / Tunnel) | 128 / 64 |
| Maximum Number of FortiTokens | 5,000 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Height x Width x Length (inches) | 1.73 x 17 x 10 |
| Height x Width x Length (mm) | 44 x 432 x 254 |
| Weight | 7.56 lbs (3.43 kg) |
| Form Factor(supports EIA/non-EIA standards) | Rack Mount, 1 RU |
| AC Power Supply | 100–240V AC, 50/60 Hz |
| Power Consumption (Average / Maximum) | 35.3 W / 39.1 W |
| Current (Maximum) | 100V / 1A, 240V / 0.5A |
| Heat Dissipation | 121.13 BTU/h |
| Redundant Power Supplies | Yes |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 40.4 dBA |
| Forced Airflow | Side to Back |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 |
