FG-140E-POE

Original price was: $2,669.00.Current price is: $2,535.55.

Model: FG-140E-POE – Fortinet NGFW Middle-range Series FortiGate 140E POE
Details: Fortinet FG-140E-POE 40 x GE RJ45(including 24 x RJ45 GE POE/POE+ ports, 14 x switch ports, 1 x MGMT port, 1x HA port, 2 x WAN ports), 2 x GE SFP DMZ slots. Max managed FortiAPs (Total / Tunnel) 64 / 32
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: FG-140E-POE Categories: ,
Description

FG-140E-POE Overview

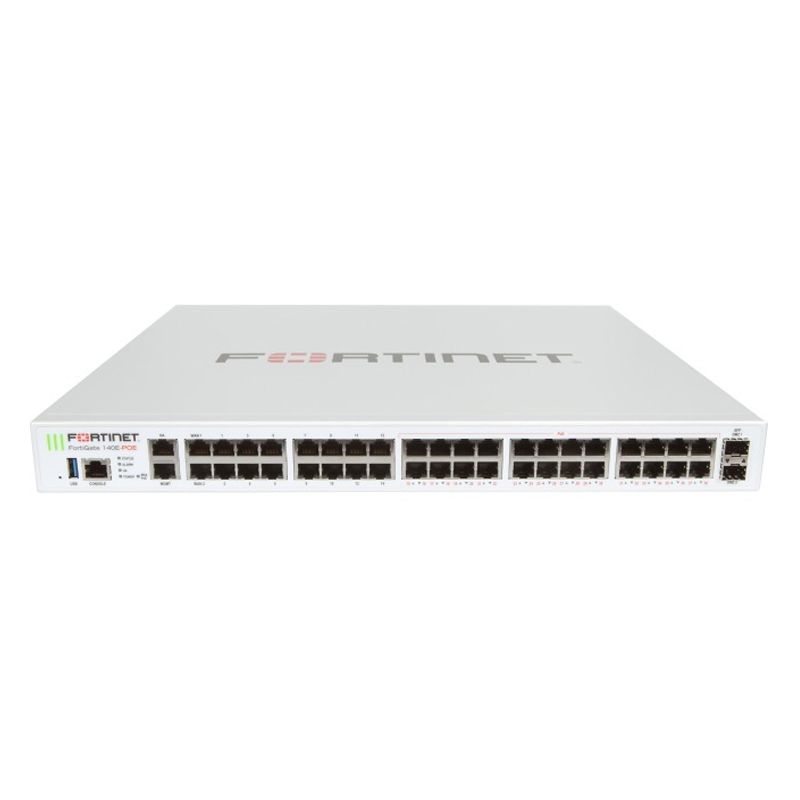

Quick Specs Figure 1 shows the appearance of FG-140E-POE.

Table 1 shows the Quick Specs.

Type FORTIGATE 140E POE
GE RJ45 Ports 14
GE RJ45 Management/HA/DMZ Ports 1 / 1 / —
GE SFP Slots 2
GE RJ45 PoE/+ Ports 24
GE RJ45 WAN Ports 2
GE RJ45 or SFP Shared Ports —
USB Port 1
Console Port 1
Internal Storage —
Included Transceivers 0
Firewall Throughput (1518 / 512 / 64 byte, UDP) 7.4 / 7.4 / 4.4 Gbps
Firewall Latency (64 byte, UDP) 3 μs
Firewall Throughput (Packet per Second) 6.6 Mpps
Concurrent Sessions (TCP) 2 Million
New Sessions/Second (TCP) 30,000
Firewall Policies 10,000
IPsec VPN Throughput (512 byte) 4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2,000
Client-to-Gateway IPsec VPN Tunnels 10,000
SSL-VPN Throughput 250 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 500
SSL Inspection Throughput (IPS, avg. HTTPS) 130 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 130
Application Control Throughput (HTTP 64K) 1 Gbps
CAPWAP Throughput (1444 byte, UDP) 1.5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 24
Maximum Number of FortiAPs (Total / Tunnel) 64 / 32
Maximum Number of FortiTokens 5,000
Maximum Number of Registered FortiClients 600
High Availability Configurations Active / Active, Active / Passive, Clustering
IPS Throughput 500 Mbps
NGFW Throughput 360 Mbps
Threat Protection Throughput 250 Mbps
Height x Width x Length 1.75 x 17 x 15.5 inches44.45 x 432 x 394 mm
Form Factor Rack Mount, 1 RU
AC Power Supply 100–240V AC, 60–50 Hz
Power Consumption (Average / Maximum) 477.1 W / 500.0 W
Heat Dissipation 1706.07 BTU/h
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 10–90% non-condensing
Noise Level 57 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6
