-5%
FG-2500E
Model: FG-2500E – Fortinet Next general Firewalls -High end-2500E Series
Details: 10x 10 GE SFP+ slots, 2x 10 GE bypass SFP+ (LC Adapter), 34x GE RJ45 ports (including 32x ports, 2x management/HA ports),SPU NP6 and CP9 hardware accelerated, 480 GB SSD onboard storage.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FG-2500E Overview

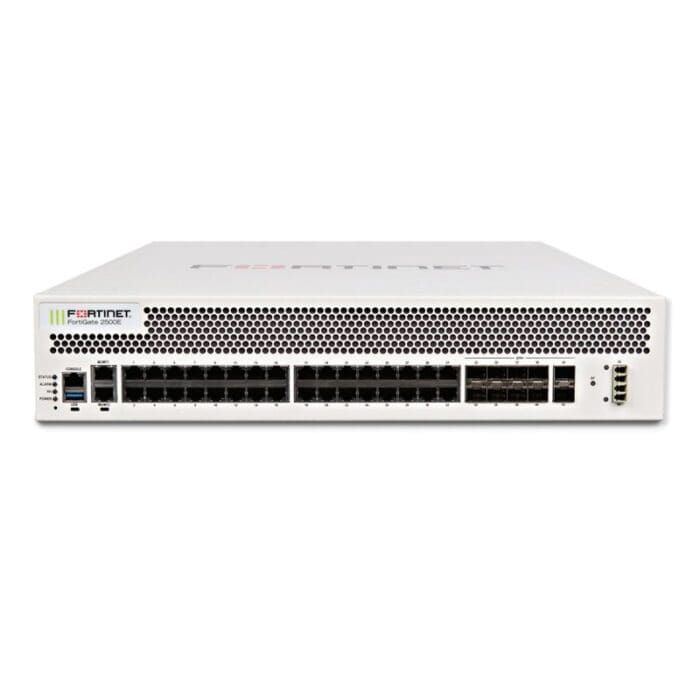

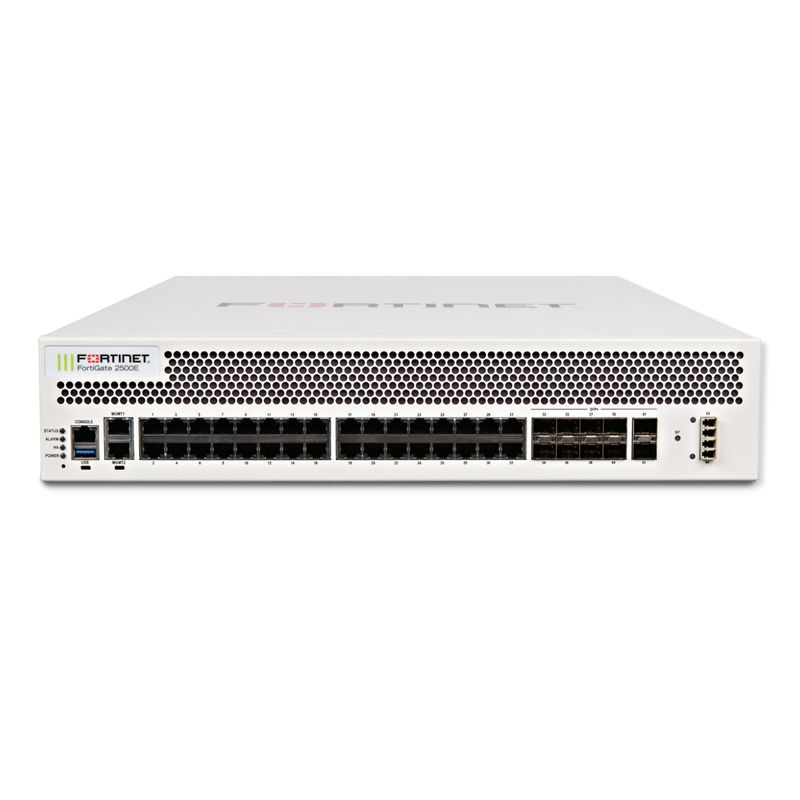

Quick Specs Figure 1 shows the appearance of FG-2500E.
Table 1 shows the Quick Specs.
| Hardware Accelerated 10 GE SFP+ Slots | 10 + 2 bypass |
| Hardware Accelerated GE RJ45 Ports | 32 |
| GE RJ45 Management / HA Ports | 2 |
| USB Ports | 1 |
| Console Port | 1 |
| Internal Storage | 1x 480 GB SSD |
| Included Transceivers | 2x SFP+ (SR 10GE) |
| IPS Throughput 2 | 11.5 Gbps |
| NGFW Throughput 2, 4 | 9 Gbps |
| Threat Protection Throughput 2, 5 | 5.4 Gbps |
| IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP) | 150 / 150 / 95 Gbps |
| IPv6 Firewall Throughput(1518 / 512 / 86 byte, UDP) | 150 / 150 / 95 Gbps |
| Firewall Latency (64 byte, UDP) | 2 μs |
| Firewall Throughput (Packet per Second) | 145.5 Mpps |
| Concurrent Sessions (TCP) | 20 Million |
| New Sessions/Second (TCP) | 500,000 |
| Firewall Policies | 100,000 |
| IPsec VPN Throughput (512 byte) | 95 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| SSL-VPN Throughput | 6 Gbps |
| Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) | 30,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 9.4 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 5,500 |
| SSL Inspection Concurrent Session(IPS, avg. HTTPS) | 2 Million |
| Application Control Throughput (HTTP 64K) | 20 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 21 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiSwitches Supported | 128 |
| Maximum Number of FortiAPs (Total / Tunnel) | 4,096 / 1,024 |
| Maximum Number of FortiTokens | 20,000 |
| Maximum Number of Registered FortiClients | 20,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Height x Width x Length (inches) | 3.5 x 17.4 x 21.9 |
| Height x Width x Length (mm) | 88 x 442 x 555 |
| Form Factor | Rack Mount, 2 RU |
| AC Power Supply | 100–240V AC, 50–60 Hz |
| Maximum Current | 9A |
| Power Consumption (Average / Maximum) | 312 W / 470 W |
| Heat Dissipation | 1,604 BTU/h |
| Redundant Power Supplies | Yes, Hot Swappable |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 58 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
