-5%
FG-3000D-DC
Model: FG-3000D-DC – Fortinet NGFW High-end Series FortiGate 3000D DC
Details: Fortinet FG-3000D-DC 16xSFP+ 10-Gig ports,1x480GB SSD internal storage, and DC power supply.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FG-3000D-DC Overview

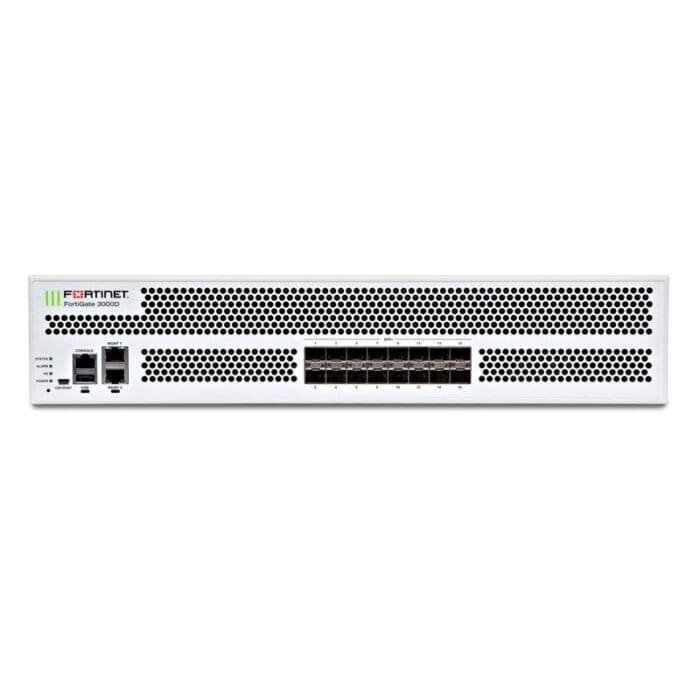

Quick Specs Figure 1 shows the appearance of FG-3000D-DC.
Table 1 shows the Quick Specs.
| Type | FORTIGATE 3000D-DC |
| 10 GE SFP+ / GE SFP Slots | 16 |
| GE RJ45 Management Ports | 2 |
| USB Ports (Server) | 1 |
| Console Port | 1 |
| Internal Storage | 1x 480 GB SSD |
| Included Transceivers | 2x SFP+ (SR 10GE) |
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 80 / 80 / 50 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 80 / 80 / 50 Gbps |
| Firewall Latency (64 byte, UDP) | 3 µs |
| Firewall Throughput (Packet per Second) | 75 Mpps |
| Concurrent Sessions (TCP) | 50 Million |
| New Sessions/Second (TCP) | 400,000 |
| Firewall Policies | 200,000 |
| IPsec VPN Throughput (512 byte) | 50 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40,000 |
| Client-to-Gateway IPsec VPN Tunnels | 200,000 |
| SSL-VPN Throughput | 8 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 15 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 8,000 |
| Application Control Throughput (HTTP 64K) | 40 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 22 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiSwitches Supported | 256 |
| Maximum Number of FortiAPs (Total / Tunnel) | 4,096 / 1,024 |
| Maximum Number of FortiTokens | 20,000 |
| Maximum Number of Registered FortiClients | 50,000 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| IPS Throughput | 23 Gbps |
| NGFW Throughput | 22 Gbps |
| Threat Protection Throughput | 13 Gbps |
| Height x Width x Length | 3.5 x 17.4 x 21.9 inches88 x 442 x 555 mm |
| Form Factor | 2 RU |
| DC Power Supply | 40.5–57V DC |
| Power Consumption (Average / Maximum) | 310 W / 427 W |
| Heat Dissipation | 1457 BTU/h |
| Redundant Power Supplies | Yes, Hot Swappable |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 50 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
