-5%
FG-300E-BDL-950-36
Model: FG-300E-BDL-950-36 – FortiGate 300E Firewall with Bundle
Details: FG-300EHardware plus 3 Year 24*7 FortiCare and FortiGuard Unified (UTP) Protection (FG-300E & FC-10-00306-950-02-36)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FG-300E-BDL-950-36 Overview

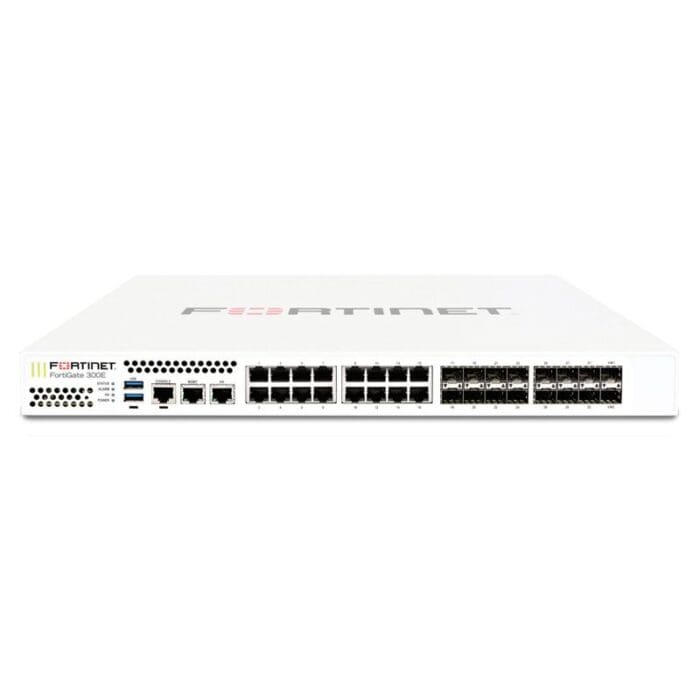

Quick Specs Figure 1 shows the appearance of FG-300E-BDL-950-36.
Table 1 shows the Quick Specs.
| GE SFP Slots | 16 |
| GE RJ45 Interfaces | 16 |
| GE RJ45 Management Ports | 2 |
| USB Ports | 2 |
| RJ45 Console Port | 1 |
| Local Storage | NIL |
| Included Transceivers | 2x SFP (SX 1 GE) |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 32 / 32 / 20 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 32 / 32 / 20 Gbps |
| Firewall Latency (64 byte, UDP) | 3μs |
| Firewall Throughput (Packet per Second) | 30 Mpps |
| Concurrent Sessions (TCP) | 4 Million |
| New Sessions/Second (TCP) | 300,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) | 20 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 2.5Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 5,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 3.9 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 2,500 |
| SSL Inspection Concurrent Session(IPS, avg. HTTPS) | 340,000 |
| Application Control Throughput (HTTP 64K) | 7 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 48 |
| Maximum Number of FortiAPs (Total / Tunnel) | 512 / 256 |
| Maximum Number of FortiTokens | 5,000 |
| Maximum Number of Registered FortiClients | 600 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| IPS Throughput | 5 Gbps |
| NGFW Throughput | 3.5 Gbps |
| Threat Protection Throughput | 3 Gbps |
| Height x Width x Length | 1.75 x 17.0 x 15.0 inches44.45 x 432 x 380 mm |
| Form Factor | 1 RU |
| AC Power Supply | 100–240V AC, 60–50 Hz |
| Power Consumption (Average / Maximum) | 95 W / 180 W |
| Current (Maximum) | 6A |
| Heat Dissipation | 570 BTU/h |
| Redundant Power Supplies | optional |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 48 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
