JZ510A Original price was: $18,130.00.Current price is: $17,223.50.
Back to products
FG-100EF Original price was: $1,511.00.Current price is: $1,435.45.

FG-301E

Original price was: $4,741.00.Current price is: $4,503.95.

Model: FG-301E – Fortinet NGFW Middle-range Series FortiGate 301E
Details: Fortinet FG-301E, 18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 16 x GE SFP slots, SPU NP6 and CP9 hardware accelerated, 2x 240GB onboard SSD storage.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: FG-301E Categories: ,
Description

FG-301E Overview

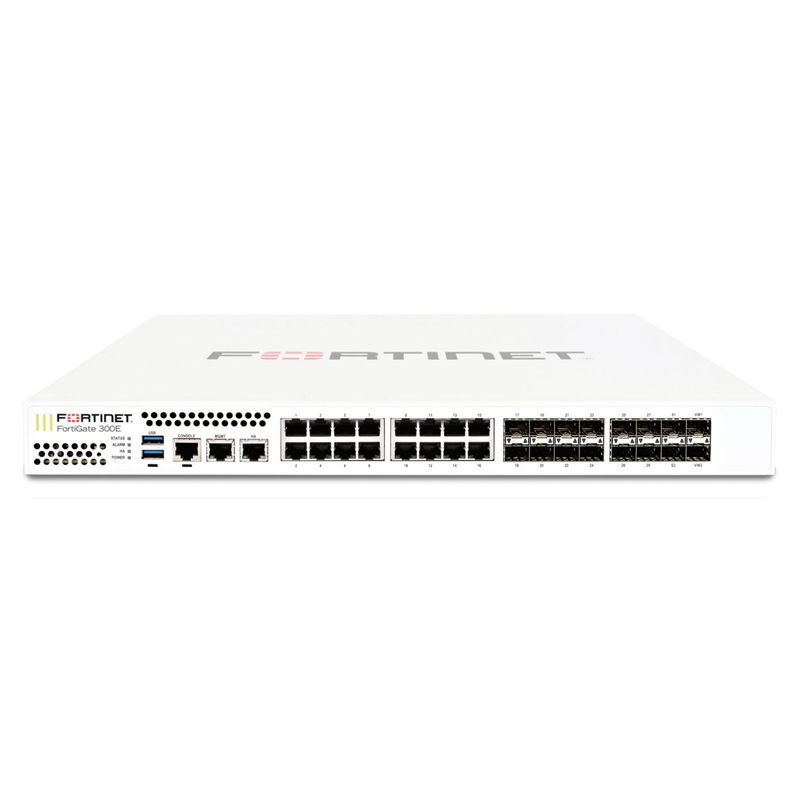

Quick Specs Figure 1 shows the appearance of FG-301E.

Table 1 shows the Quick Specs.

Type FORTIGATE 301E
GE SFP Slots 16
GE RJ45 Interfaces 16
GE RJ45 Management Ports 2
USB Ports 2
RJ45 Console Port 1
Local Storage 2x 240 GB SSD
Included Transceivers 2x SFP (SX 1 GE)
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 32 / 32 / 20 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) 32 / 32 / 20 Gbps
Firewall Latency (64 byte, UDP) 3 μs
Firewall Throughput (Packet per Second) 30 Mpps
Concurrent Sessions (TCP) 4 Million
New Sessions/Second (TCP) 300,000
Firewall Policies 10,000
IPsec VPN Throughput (512 byte) 20 Gbps
Client-to-Gateway IPsec VPN Tunnels 50,000
SSL-VPN Throughput 2.5Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 5,000
SSL Inspection Throughput (IPS, avg. HTTPS) 3.9 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 2,500
Application Control Throughput (HTTP 64K) 7 Gbps
CAPWAP Throughput (1444 byte, UDP) 5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 48
Maximum Number of FortiAPs (Total / Tunnel) 512 / 256
Maximum Number of FortiTokens 5,000
Maximum Number of Registered FortiClients 600
High Availability Configurations Active-Active, Active-Passive, Clustering
IPS Throughput 5 Gbps
NGFW Throughput 3.5 Gbps
Threat Protection Throughput 3 Gbps
Height x Width x Length 1.75 x 17.0 x 15.0 inches44.45 x 432 x 380 mm
Form Factor 1 RU
AC Power Supply 100–240V AC, 60–50 Hz
Power Consumption (Average / Maximum) 95 W / 180 W
Current (Maximum) 6A
Heat Dissipation 570 BTU/h
Redundant Power Supplies optional
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 10–90% non-condensing
Noise Level 48 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

Get more information
Do you have any question about the FG-301E?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices.

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Fortinet certified engineer under customers’ permission.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured.
