FG-30E-BDL-950-12 (FG-30E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified)
Model: FG-30E-BDL-950-12 – Fortinet FortiGate NGFW Entry-level Series
Details: FG-30E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTP) Protection (FG-30E & FC-10-0030E-950-02-12)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FG-30E-BDL-950-12 (FG-30E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified) Overview

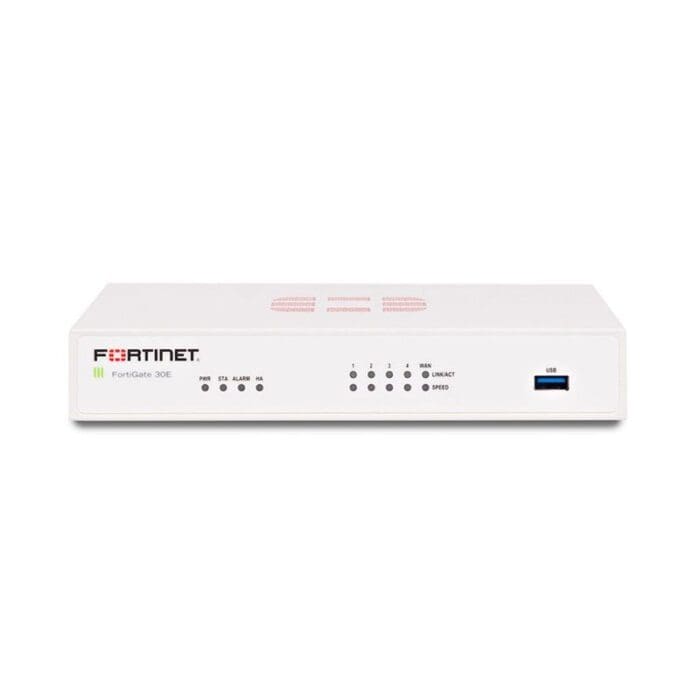

Quick Specs Figure 1 shows the appearance of FG-30E-BDL-950-12 (FG-30E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified).
_1.png)
Table 1 shows the Quick Specs.
| Contents | Appliance, documentation |
| General Information | System Performance – Enterprise Traffic Mix:IPS Throughput: 300 MbpsNGFW Throughput: 200 MbpsThreat Protection Throughput: 150 MbpsSystem Performance:Firewall Throughput: 950 MbpsFirewall Latency (64 byte UDP packets): 130 µsFirewall Throughput (Packets Per Second): 180 KppsConcurrent Sessions (TCP): 900,000New Sessions/Second (TCP): 15,000Firewall Policies: 5,000IPsec VPN Throughput (512 byte): 75 MbpsGateway-to-Gateway IPsec VPN Tunnels: 200Client-to-Gateway IPsec VPN Tunnels: 250SSL-VPN Throughput: 35 MbpsConcurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 80SSL Inspection Throughput (IPS, avg. HTTPS): 125 MbpsSSL Inspection CPS (IPS, avg. HTTPS): 120SSL Inspection Concurrent Session (IPS, avg. HTTPS): 45,000Application Control Throughput (HTTP 64K): 400 MbpsCAPWAP Throughput (HTTP 64K) 850 MbpsVirtual Domains (Default / Maximum): 5 / 5Maximum Number of Switches Supported: 8Maximum Number of FortiAPs (Total / Tunnel Mode): 2 / 2Maximum Number of FortiTokens: 20Maximum Number of Registered FortiClients: 200High Availability Configurations: Active/Active, Active/Passive, Clustering |
| Physical Dimensions | 1.61″h x 8.27w x 5.24″d |
| Ports/Connectors | (4) GE RJ45 Switch(1) GE RJ45 WAN(1) USB(1) Console RJ45 |
| Power Notes | Power Required: 100–240V AC, 60–50 Hz(External DC Power Adapter)Maximum Current: 100V / 0.6A, 240V / 0.4APower Consumption (Average / Maximum): 13 / 15 W |
| Networking Protocol: | Gigabit Ethernet |
| Remote Management Protocol: | HTTP |
| Switching Protocol: | Ethernet |
| Transport Protocol: | IPSec |
Get more information
Do you have any question about the FG-30E-BDL-950-12 (FG-30E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified)?
Contact us now via Live Chat or sales@metafinitivetech.com
