FC-10-0400E-950-02-60 Original price was: $19,264.00.Current price is: $18,300.80.
Back to products
FG-40F-BDL-950-36 Original price was: $1,181.00.Current price is: $1,121.95.

FG-40F

Original price was: $288.00.Current price is: $273.60.

Model: FG-40F – Fortinet FortiGate/FortiWiFi Series
Details: FortiGate 40F FG-40F, 5 x GE RJ45 ports (including 4 x Internal Ports, 1 x WAN Ports)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: FG-40F Categories: , , ,
Description

FG-40F Overview

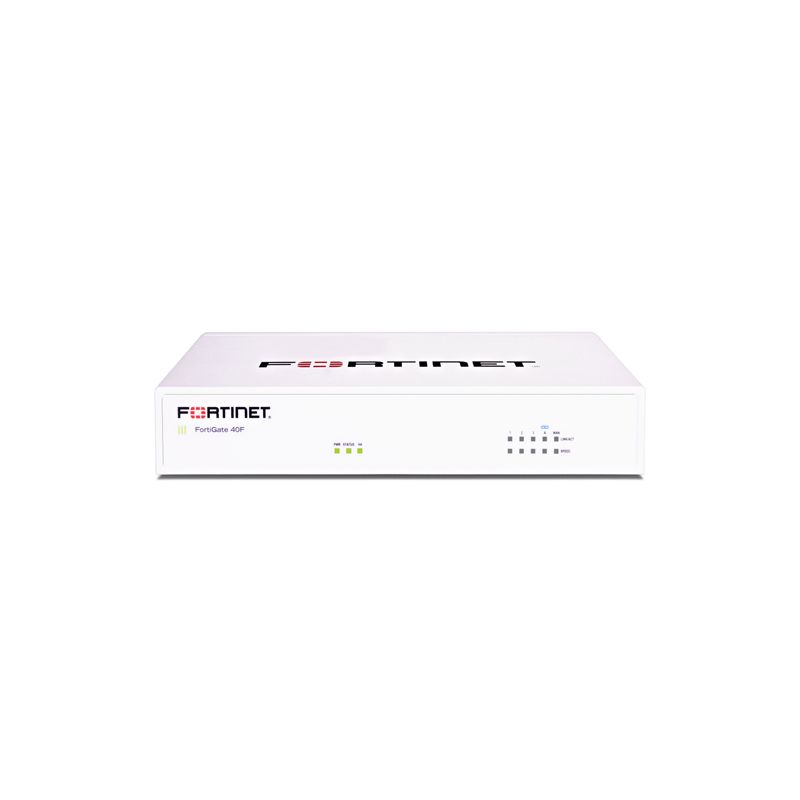

Quick Specs Figure 1 shows the appearance of FG-40F.

Table 1 shows the Quick Specs.

Hardware Accelerated GE RJ45 WAN / DMZ Ports 1
Hardware Accelerated GE RJ45 Internal Ports 3
Hardware Accelerated GE RJ45 FortiLink Ports (Default) 1
Hardware Accelerated GE RJ45 PoE/+ Ports 0
Wireless Interface 0
USB Ports 1
Console Port (RJ45) 1
Onboard Storage 0
Included Transceivers 0
IPS Throughput2 1 Gbps
NGFW Throughput2, 4 800 Mbps
Threat Protection Throughput2, 5 600 Mbps
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 5 / 5 / 5 Gbps
Firewall Latency (64 byte, UDP) 2.97μs
Firewall Throughput (Packet per Second) 7.5 Mpps
Concurrent Sessions (TCP) 700,000
New Sessions/Second (TCP) 35,000
Firewall Policies 5,000
IPsec VPN Throughput (512 byte)1 4.4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 250
SSL-VPN Throughput 490 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
SSL Inspection Throughput(IPS, avg. HTTPS)3 310 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)3 320
SSL-VPN Throughput 490 MbpsSSL Inspection Concurrent Session (IPS, avg. HTTPS)3 55,000
Application Control Throughput(HTTP 64K)2 990 Mbps
CAPWAP Throughput (HTTP 64K) 3.5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 8
Maximum Number of FortiAPs (Total / Tunnel) 16 / 8
Maximum Number of FortiTokens 500
Maximum Number of Registered FortiClients 20,000
High Availability Configurations Active, Active-Active, Passive, Clustering
Height x Width x Length (inches) 1.5 x 8.5 x 6.3
Height x Width x Length (mm) 38.5 x 216 x 160
Weight 2.2 lbs (1 kg)
Form Factor Desktop
Input Rating 12Vdc, 3A
Power Required Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum) 13.4 W / 15.4 W
Current (Maximum) 100V AC / 0.2A, 240V AC / 0.1A
Heat Dissipation 52.55 BTU/h
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 10–90% non-condensing
Noise Level Fanless 0 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
Multiple (MU) MIMO 0
Maximum Wi-Fi Speeds 0
Maximum Tx Power 0
Antenna Gain 0
