-5%
FG-40F-BDL-950-12
Model: FG-40F-BDL-950-12 – Fortinet FortiGate/FortiWiFi Series
Details: FG-40F Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTP) Protection (FG-40F & FC-10-0040F-950-02-12)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FG-40F-BDL-950-12 Overview

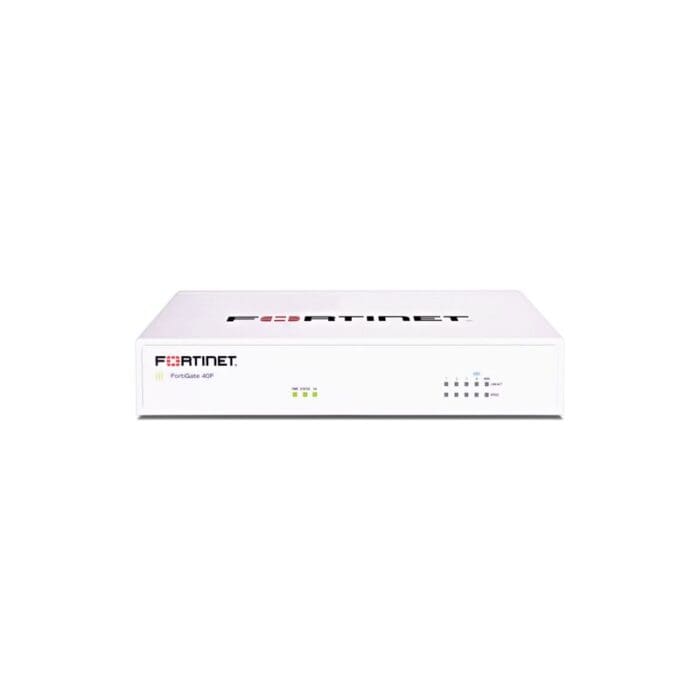

Quick Specs Figure 1 shows the appearance of FG-40F-BDL-950-12.
Table 1 shows the Quick Specs.
| Compliant Standards | UL, VCCI, C-Tick, cUL, CB, FCC Part 15 Class B |
| Form Factor | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPSec |
| Performance | IPS throughput: 1 Gbps ¦ NGFW throughput: 800 Mbps ¦ Threat protection throughput: 600 Mbps ¦ VPN throughput (512-bit IPSec): 4.4 Gbps ¦ SSL inspection throughput: 310 Mbps ¦ SSL inspection throughput: 320 connections per second ¦ Firewall throughput (1518-byte UDP): 5 Gbps ¦ Firewall throughput (512-byte UDP): 5 Gbps ¦ Firewall throughput (64-byte UDP): 5 Gbps ¦ Firewall throughput: 7.5 Mpps ¦ Application control (HTTP 64K): 990 Mbps ¦ VPN throughput (SSL): 490 Mbps ¦ CAPWAP throughput: 3.5 Gbps |
| Capacity | Latency: 4 µs ¦ Concurrent sessions: 700000 ¦ New sessions: 35000 ¦ Firewall policies: 5000 ¦ Gateway to gateway IPSec VPN Tunnels: 200 ¦ Client to gateway IPSec VPN tunnels: 250 ¦ Virtual domains: 10 ¦ Number of FortiSwitches: 8 ¦ Number of FortiAP devices: 10 ¦ Number of FortiToken devices: 500 ¦ Concurrent SSL VPN users: 200 ¦ SSL inspection concurrent sessions: 55000 ¦ Number of FortiClient devices: 200 |
| Features | Firewall protection, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), fanless, web threat protection, FortiLink Mode |
| Encryption Algorithm | SSL, TLS 1.3 |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Device Type | Security appliance |
| Bundled Services | 1 year 24×7 FortiCare and FortiGuard Unified (UTM) Protection |
| Width | 8.5 in |
| Depth | 5.5 in |
| Height | 1.4 in |
| Processors Installed | 1 x Fortinet FortiASIC SOC4 |
| Interfaces | 3 x 1000Base-T – RJ-45 ¦ 1 x FortiLink – RJ-45 ¦ 1 x 1000Base-T – RJ-45 (WAN / DMZ) ¦ 1 x console – RJ-45 ¦ 1 x USB 3.0 – Type A |
| Power Device | External power adapter |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50 – 60 Hz) |
| Power Consumption Operational | 16.6 Watt |
| OS Provided | FortiOS |
Get more information
Do you have any question about the FG-40F-BDL-950-12?
Contact us now via Live Chat or sales@metafinitivetech.com
