-5%
FG-601E
Model: FG-601E – Fortinet NGFW Middle-range Series FortiGate 601E
Details: Fortinet FG-601E, 2x 10 GE SFP+ slots, 10x GE RJ45 ports (including 1x MGMT port, 1x HA port, 8x switch ports), 8x GE SFP slots, SPU NP6 and CP9 hardware accelerated, 2x 240 GB onboard SSD storage
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FG-601E Overview

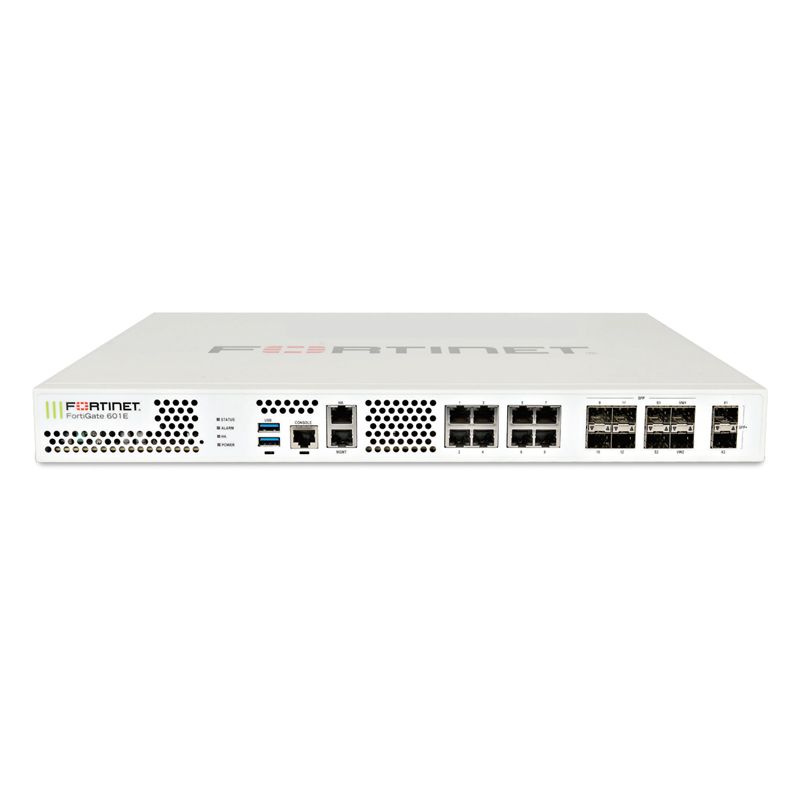

Quick Specs Figure 1 shows the appearance of FG-601E.
Table 1 shows the Quick Specs.
| Type | FORTIGATE 601E |
| 10 GE SFP+ Slots | 2 |
| GE SFP Slots | 8 |
| GE RJ45 Interfaces | 8 |
| GE RJ45 Management Ports | 2 |
| USB Ports | 2 |
| RJ45 Console Port | 1 |
| Local Storage | 2x 240 GB SSD |
| Included Transceivers | 2x SFP (SX 1 GE) |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 36 / 36 / 27 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 36 / 36 / 27 Gbps |
| Firewall Latency (64 byte, UDP) | 2 μs |
| Firewall Throughput (Packet per Second) | 40.5 Mpps |
| Concurrent Sessions (TCP) | 8 Million |
| New Sessions/Second (TCP) | 450,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) | 20 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 7 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 8 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 5,500 |
| Application Control Throughput (HTTP 64K) | 15 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 64 |
| Maximum Number of FortiAPs (Total / Tunnel) | 1024 / 512 |
| Maximum Number of FortiTokens | 5,000 |
| Maximum Number of Registered FortiClients | 2,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| IPS Throughput | 10 Gbps |
| NGFW Throughput | 9.5 Gbps |
| Threat Protection Throughput | 7 Gbps |
| Height x Width x Length | 1.75 x 17.0 x 15.0 inches44.45 x 432 x 380 mm |
| Form Factor | 1 RU |
| AC Power Supply | 100–240V AC, 60–50 Hz |
| Power Consumption (Average / Maximum) | 129 W / 244 W |
| Current (Maximum) | 6A @ 100V |
| Heat Dissipation | 832 BTU/h |
| Redundant Power Supplies | optional |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 59 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
